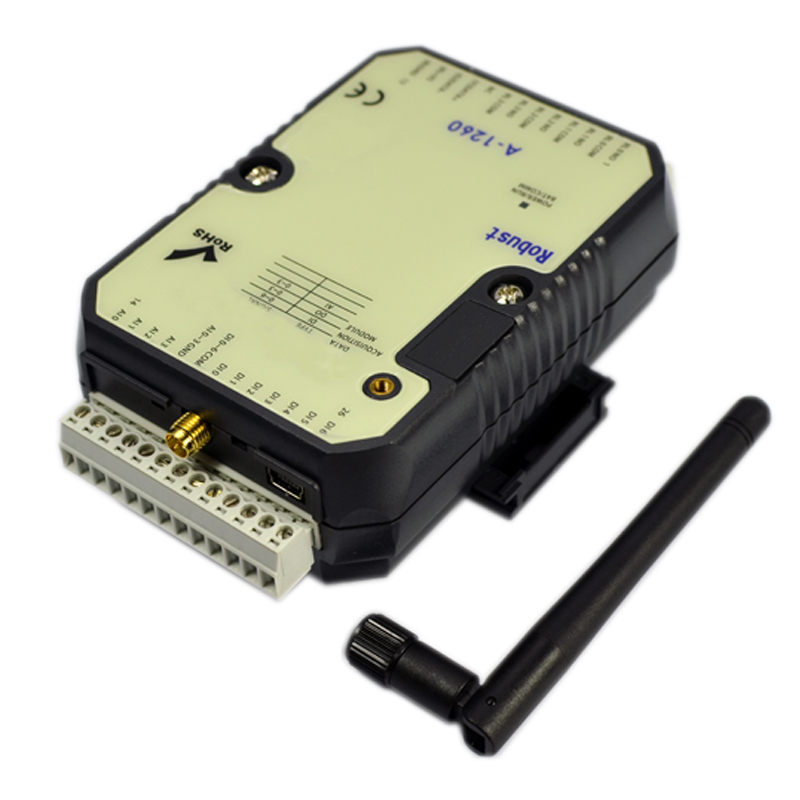

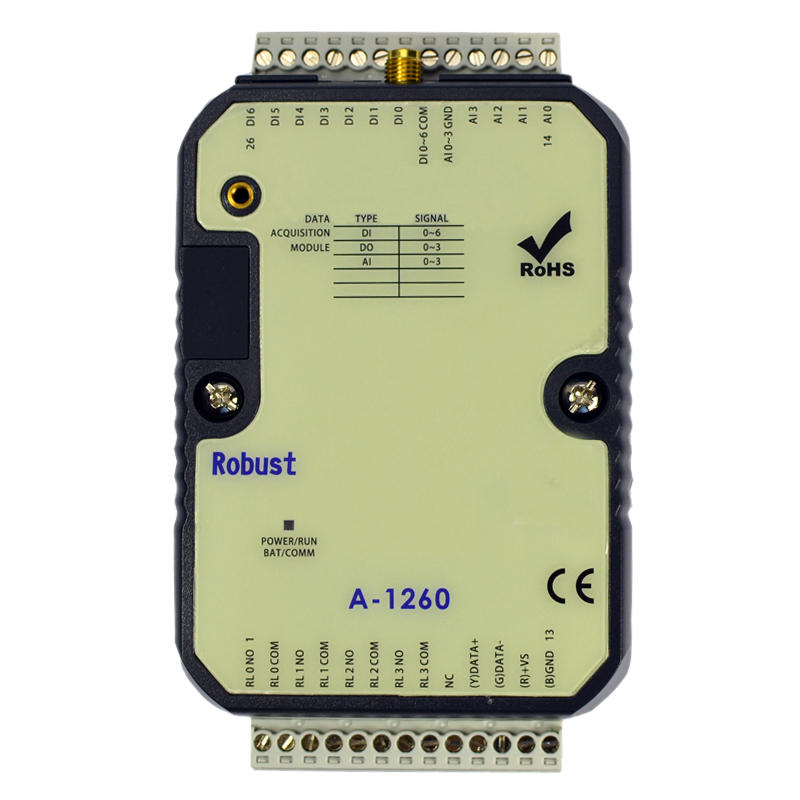

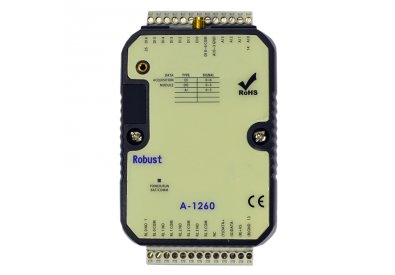

A-1260

7DI 4AI(0-10V) 4DO Wi-Fi Remote I/O Module
image_here
Part number: A-1260
In Stock : Available

ATC remote Wi-Fi I/O Modbus module, support RTU/ASCII/TCP protocol, through the RS-485 communication port and ATC series controller to control the communication. And it also can communicate with other devices that support the Modbus RTU/ASCII protocol, host computer communication or remote command control. It also can be connected to the A-3290 Wi-Fi bidirectional remote controller directly control the output, no the need for any controller. The Wi-Fi function of the module support set up AP mode and Client mode to make the series of module work in Bus network or networking by Wi-Fi. To make the I/O points can flexible expansion.
※ Analog Input 12-bit Resolution
※ Support Analog Input 0-10V
※ Burn-out Detection
※ WIFI Interface + RS-485 Interface + USB Interface
※ Hi-Speed RS-485 Interface (Max 921600bps)
※ Standard 2.4GHz IEEE 802.11 b/g (Wi-Fi)
※ Built-in Step Motor Driver, Connect Directly
※ Output Over Current Protection (OCP)
※ Output Over Thermal Protection (OTP)
※ Output Under Voltage Lockout (UVLO)
※ Support MODBUS TCP/IP, UDP/IP ,RTU ,ASCII
※ Able to connect Wi-Fi AP, Internet Of Things (IOT), remote control
※ Support WPA2-PSK(AES)
※ Free PC software“Utility"

Type

A-1260

Operation Voltage

10 ~ 30VDC/24VAC

Inputs

7 * Isolation DI

Status Low:<1VDC

Status High:>5~30VDC

Outputs

4 *(Power Relay)

Continuous Current

250VAC (7A) / 30VDC(7A)

Communication Baud Rate

2400 ~ 921600bps

Isolation

YES(5000VDC)

Input Operating Frequency

10Hz

Output Operating Frequency

10Hz

Operation Temperature

-20 to +75℃

Degree Of Protection

IP20

Installation

35 mm DIN rail / Flush mounting

Dimension(W×H×D)

76.4*118.2*38.5 mm

Analog Inputs

4*(12 - bit)

Analog Input Type

0-10V

Analog Outputs

-

Analog Output Type

-

Input Impedance

Voltage :  10 MΩ

Input Accuracy

±1%

Interface

Wi-Fi + RS-485 + USB

Channel Independent Configuration

Yes

Sampling Rate

10 sample/second(Total)

CMR @ 50/60 Hz

120 dB

Span Drift

±50 ppm/℃

Zero Drift

±18 μV/℃

Application Diagram:



Unit: mm
