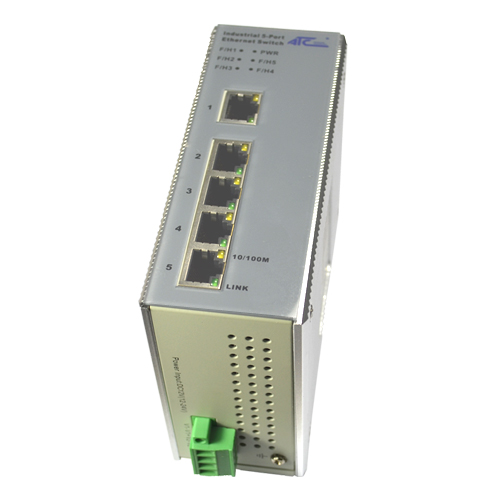

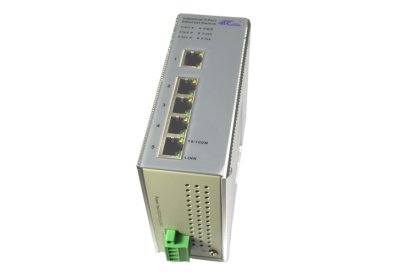

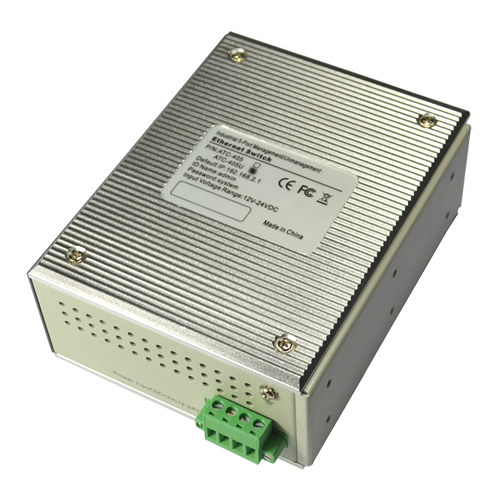

ATC-405U

5-port-unmanagement-industrial-ethernet-switches-U
image_here
Part number: ATC-405U
In Stock : Available
Datasheet
User's Manual
Driver & software

The ATC-405U are standalone 5-port Unmanged Ethernet switches and operates in store and forward mode. ATC-405U have a lot of rich feature for different  application,include router application,firewall, IEEE 802.1Q, IGMP snooping, policy-based QoS. It provides powerful QoS function,include traffic policy, traffic meter, and flexible queue scheduling (WRR/WFQ/SP). In virtual LAN, IP175DLF support port-based VLAN and IEEE 802.1Q tag-tagged VLAN (up  to 16VLAN groups).With the broadcast storm protection function support ATC-405U increase the reliability and availability of your industrial Ethernet network.Models with an wide operating temperature range of -40 to 85°C are also available, and the switches support advanced management and security features, making the ATC-405U switches suitable for any harsh industrial Environment. ATC-405U series switches can be installed.

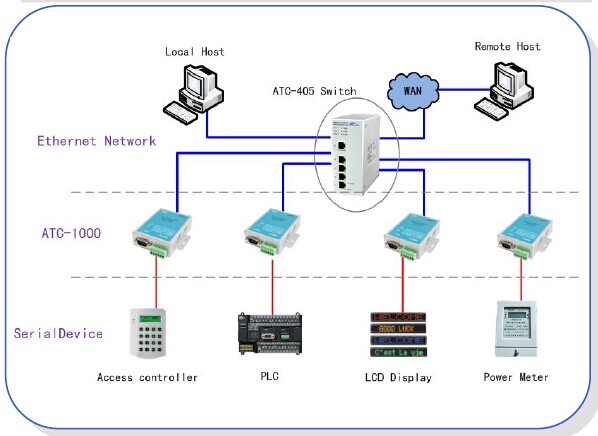

Our products are widely used in electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective, timely and thoughtful service. ATC-405U is a five-Unmanaged industrial Ethernet switches, it has 10Base-T and 100Vase-TX Ethernet, full / half duplex mode, five Ethernet ports MDI / MDI-X adaptive connection, products for small businesses, security systems, bank management, and so on. . .



ATC-405U Switch  1PCS
Documentation and Software CD 1PCS

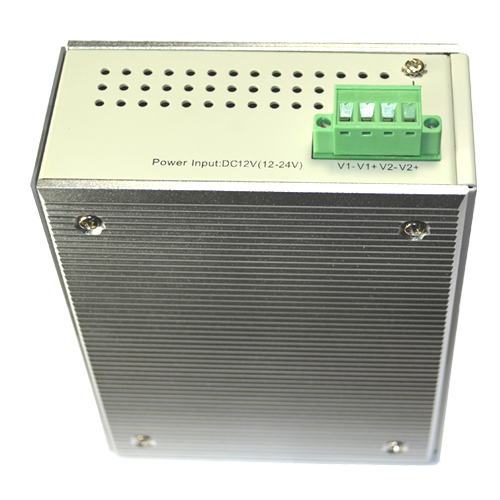

Power Adapter(12-24V) 1PCS
