ATC-1000WF

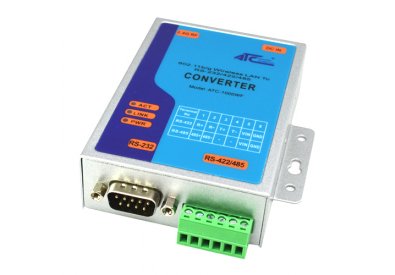

.jpg)
The ATC-1000WF is a 2.4GHz 802.11b/g WiFi device with U.FL connector for external antenna transceiver on board to provide a complete. The ATC-1000WF is a rail mounting device with lower-cost, pre-calibrated RF front-end and pre-certified Wi-Fi. This complete solution is preloaded with software to simplify integration and minimizes development of your application. In the simplest configuration the hardware only requires four connections (PWR, TX, RX, GND) to create a wireless data connection. The ATC-1000WF is programmed and controlled with a simple ASCII command language and webpage. Once the ATC-1000WF is setup it can scan to find an access point, associate, authenticate and connect over any Wi-Fi network.
.jpg)
| Serial lnterface | ||
| lnterface Type | RS-233/485/422 3 in 1(optional) | |
| UART Speed | 1200bps to 115200bps | |
| Data bits | 5,6,7 or 8 bits | |
| Parity | None,Odd,Even | |
| Stop Bits | 1,1.5 or 2 bits | |
| Flow Control | None,Software;Xon/xoff,Hardware;RTS/CTS | |
| Protocol |
IP/TCP/UDP/ICMP/IGMP Checksum and ARP in hardware;TCP,UDP,ICMP,IGMP,IPv4,DHCP,BOOTP,ARP, DNS,SMTP,SNTP,UPnP,PPPoE,Telnet,and HTTP in software
|
|
| Connector | RS-232 | DB-9 male |
| RS-485/422 | 6-pin Teminal block | |
| Radio Characteristics | ||
| Frequency | 2.412 - 2.472 GHz | |
| Channels | 1-11 | |
|
Transmission rate (over the air) |
IEEE 802.11b;1,2,5.5 and 11 Mbps IEEE 802.11g;6,9,12,18,24,36,48,and 54Mbps Supports TX rate auto fall-back mechanism |
|
| Wi-Fi Certified ID | WFA11474 for AXM22001-2A-B | |
| System | ||
| CPU | ASLX AX22001,dual 8-bit 1T 8051/80390 CPU (MCPU/WCPU)@80MHz | |
| Memory | 1M FLASH,64K SRAM | |
| RF Transceiver | Airoha AL2230S | |
| LED lndicators | LINK | WLAN status |
| ACT | lt will flash when transmit the data from WLAN toserial or from serial to WLAN | |
| PWR | Power indicator | |
| Power Supply | 9-24VDC | |
| Physical Characteristics | ||
| Housing | lron(1mm) | |
| Weight | 0.5Kg | |
| Dimensions | 100*86*26mm(3.94*3.39*1.02in) | |
| Environmental Limits | ||
| Operating Temperature | -20 - +70℃ | |
| Storage Temperatre | -40 - 85℃ | |
| Ambient Relative Humidity | 5% to 95%(non-condensing) | |
| Standards and Certifications | ||
| RoHS,CE,FCC | ||

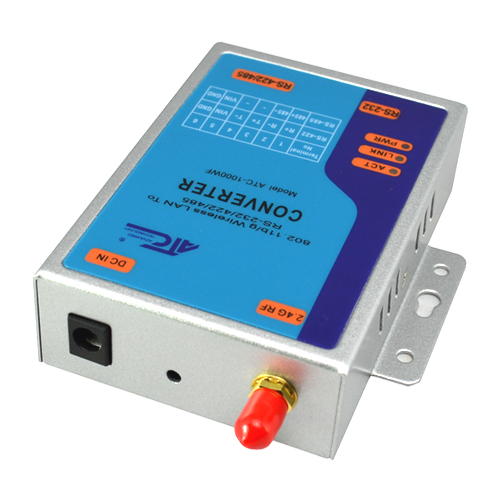

.jpg)
(1)

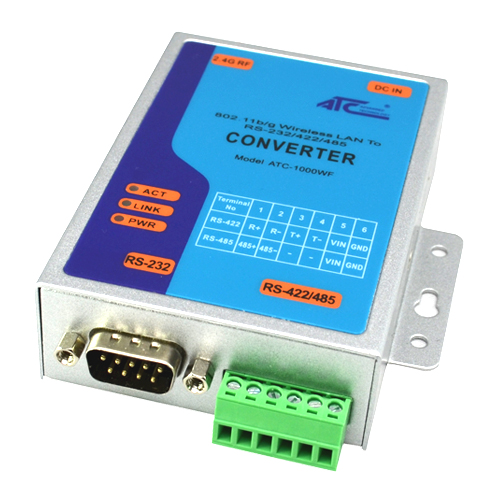

.jpg)
（2）

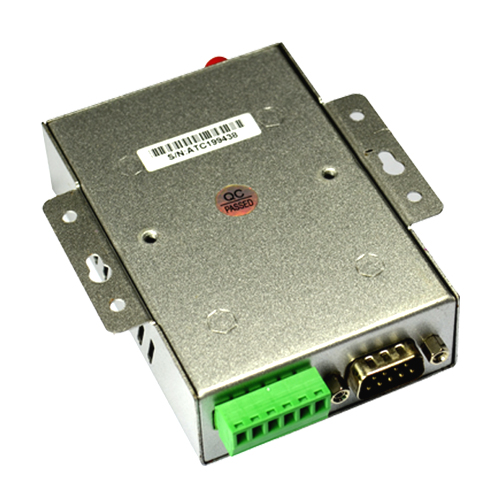

.jpg)
（3）

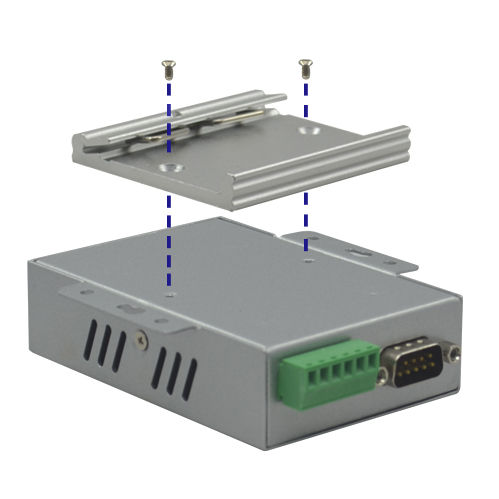

.jpg)

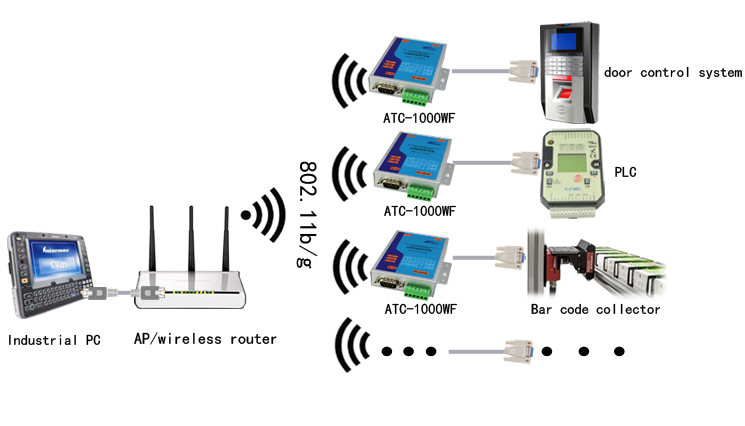

Our products are widely used in electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective, timely and thoughtful service. ATC-1000WF has 802.11b / g Wi-Fi industry standard port to connect VLAN, products using standard 2.4G Wi-Fi 802.11b / g transceiver and base station architecture and Ad-Hoc network topology interface via the wireless network card or AP Easy (transmission distance: visual distance 350 meters). For wireless audio, fortune equipment monitoring, telemetry, security, industrial sensor control, smart home, medical equipment, RS232 / 485/422 serial devices to wireless working.
.jpg)
.jpg)
| ATC-1000WF unit | 1PCS |
| Documentation and software CD | 1PCS |
| Power adapter (EU、SU、AU、CN)9v@1A | 1PCS |
| ATC-1000WF Instructions Book | 1PCS |
| monopole Antenna (2 bBi RP-SMA) | 1PCS |
| Din Rail Mounting Bracket ( for choosing accessory) | |
