A-1055S

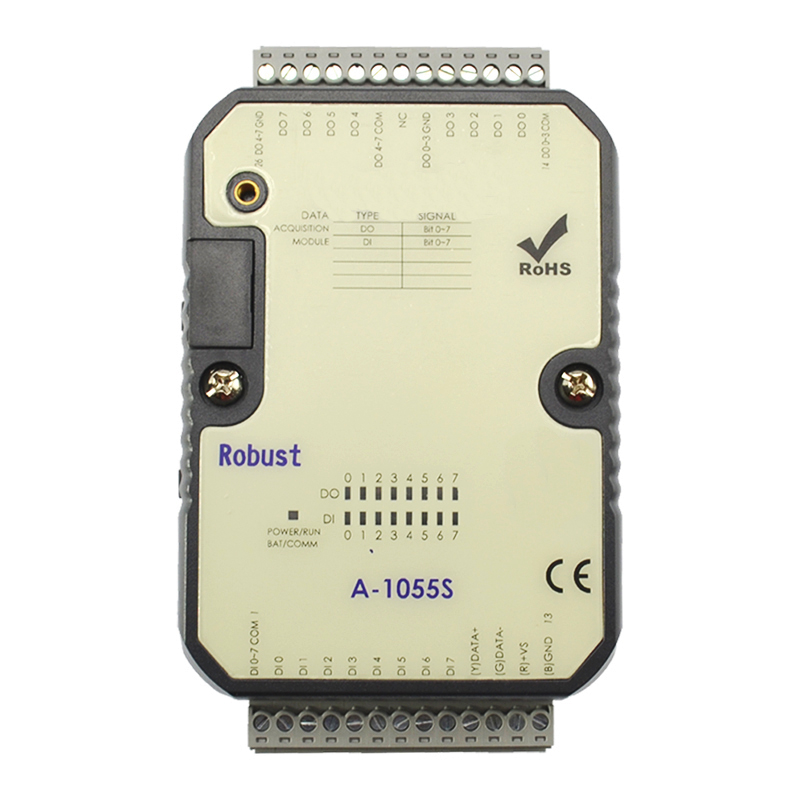

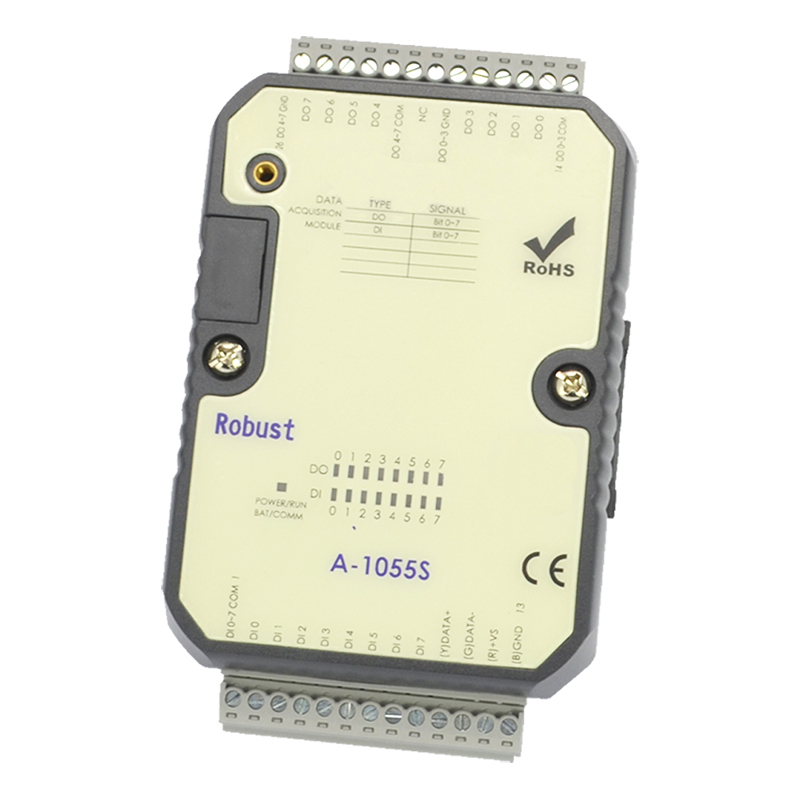

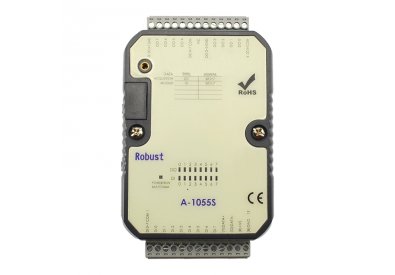

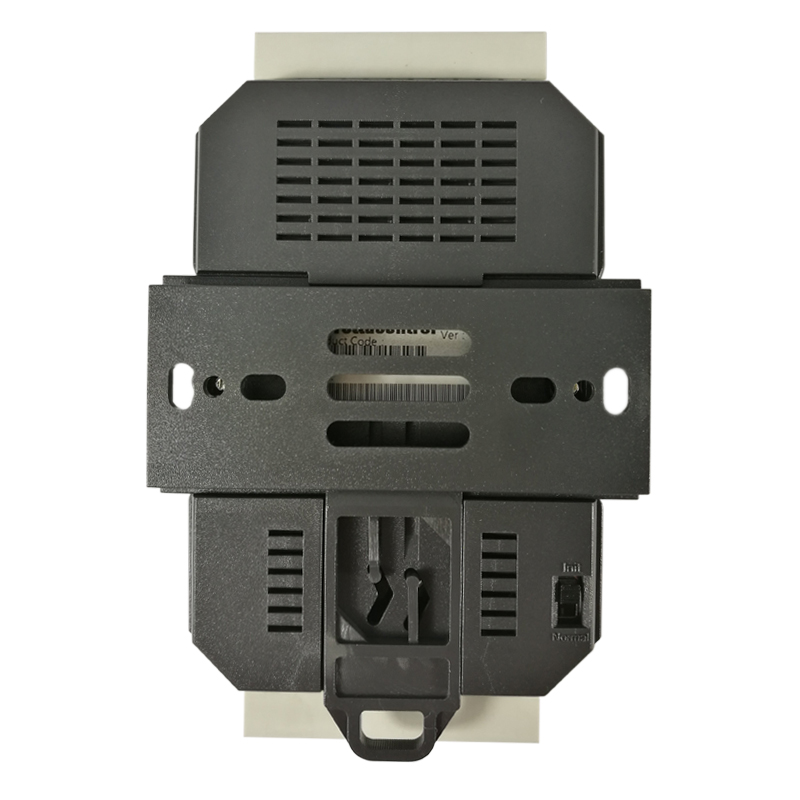

8DI 8DO Digital I/O Module
image_here
Part number: A-1055S
In Stock : Available

ATC remote RS-485 I/O module, support Modbus RTU/ASCII protocol, can be applied to the full range of ATC controller. And it also can communicate with other devices that support the Modbus RTU/ASCII protocol, host computer communication or remote command control. It can make the series of module work in Bus network and the I/O points can flexible expansion.

A Series Remote I/O Modules

Model:A-1055S

Product Features

  • RS-485 Interface
  • Supports Modbus RTU / ASCII
  • LED Indicators
  • Isolation voltage: 5000 V DC
  • Wide operation temperature : -20 ~ +75 °C
  • Dual watchdog timer
  • Surge , EFT and ESD protection
  • Free PC software “Utility”

 Product specification

Technical Specifications

Inputs

8DI

Outputs

8DO(Source Output)

Interface Type

RS-485

Support Protocols

ModBus RTU / ModBus ASCII

Data Rate

1200bps ~ 115200bps

Data Bit

8 bits

Parity

Odd, Even, None

Stop Bits

1,2 bits

Isolation Voltage

5000 VDC

Intput Rating

Logic Level 0

+1 VDC (Max)

Logic Level 1

+3.5~30 VDC

Output Rating(Max)

40VDC/200mA

Output Frequency 100Hz

Software

Configure Options

 Utility

OS support

Windows XP/2000/2003/Vista/7

LED Indicators

POWER/RUN BAT/COMM

Orange/Orange/Flash

Input/Output

Red

Power Supply

10~30VDC

Power  Consumption

Nearly  24VDC  1.28W

Physical Characteristics

Installation

DIN-Rail Mounting

Housing

Plastic ABS

Weight

0.2Kg

Dimensions

118 × 76 × 40.7 mm

Operating Temperature

-20 ~ 75°C

Storage Temperature

-40 ~ 85°C

Ambient Relative Humidity

5% to 95%(non-condensing)

Standards and Certifications

RoHS, CE

Application Diagram:



The dimension of A-1055S

The product packing list

  • A series of A-1055S
  • A specification
