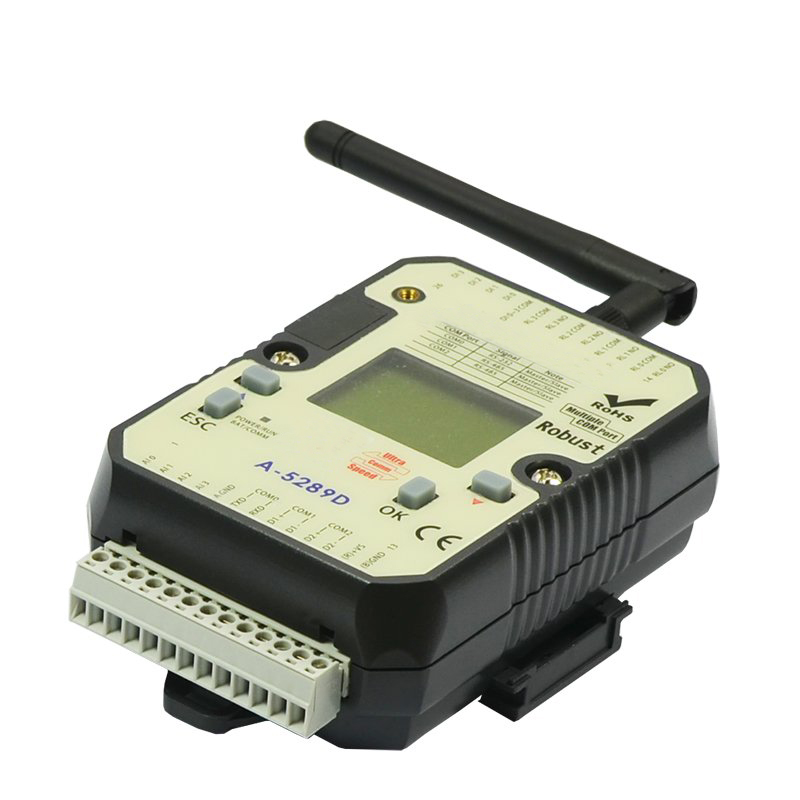

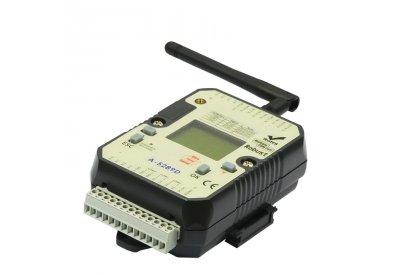

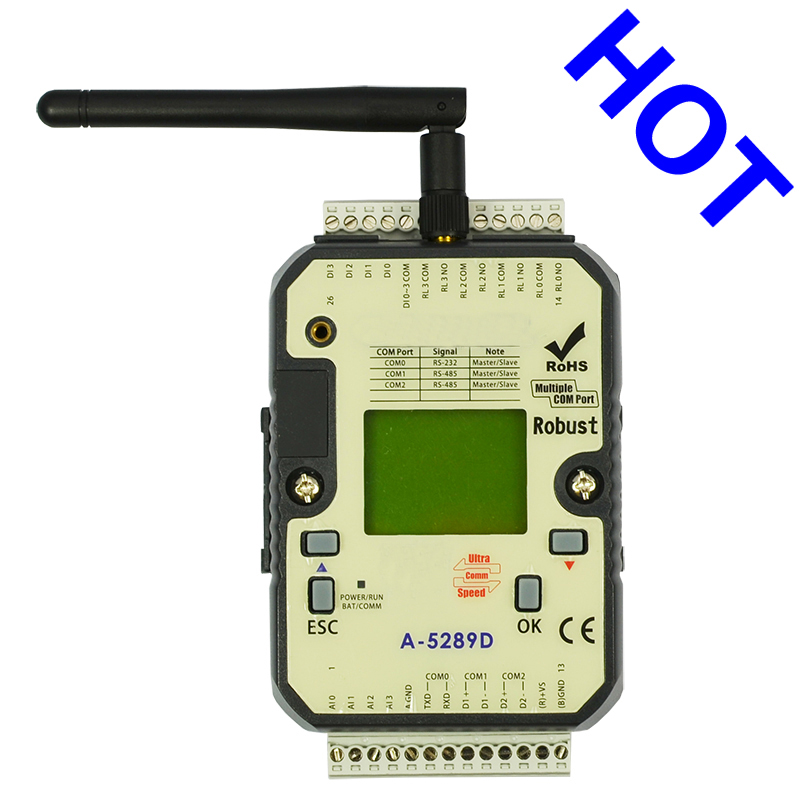

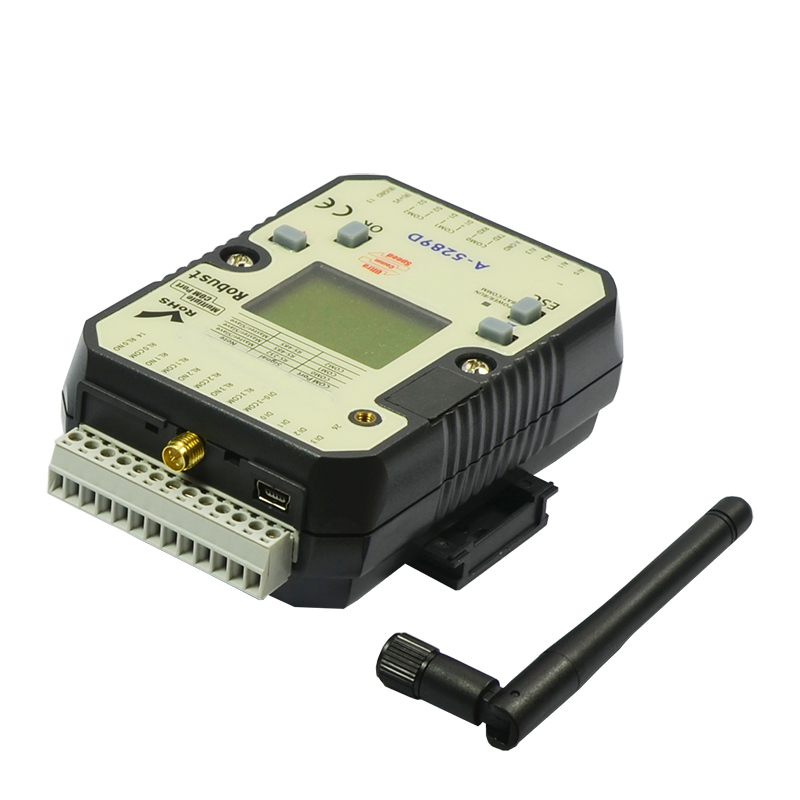

A-5289D

4DI 4AI 4DO, Relay Output,Wi-Fi Communication
image_here
Part number: A-5289D
In Stock : Available
User's Manual
Driver & software

※ Creation of control programs in Function Block Diagram (FBD)or Ladder Diagram (LAD)
※ 4-Axis Synchronous Motion, 100 KHz PWM (Total 400KHz)
※ Able To Edit The Parameter Among The Controller Operation
※ Multiple AUTO-PI Synchronous Function
※ Multi-Lingual Display Menu
※ Enhance Password & Safety Function
※ Text Display Can Be Pre-Programmed in Two Languages
※ Built-in Standard High Frequency Counter (250KHz per Input, Total 1000KHz)
※ Built-in Standard Real Time Clock (RTC)
※ PC Program Can be Used For All A-61/52/62 Series
※ ATP2 Text Panel Can Plug & Play Directly
※ Built-in Standard RS-485 Port, Connect More Than 10000 IOs Via Remote IO Module
※ Memory Card Which Has Copy & Password Protection
※ Connect Encoder & Multi-Sensors Directly
※ Built-in Step Motor Driver, Connect Directly
※ Built-in Datalog Function, MicroSD Plug-in
※ Display Text Display Diversity Patterns, Scrolling Text, Bar Charts, Indicators ....
※ 108 FBD Integrated Functions, 103 LD Integrated Functions
※ Astronomical Clock Function
※ ATP2 Text Panel Built-in Function Key
※ Digital Oscilloscope Function, Real-Time Monitoring
※ High-Level Math Functions
※ Communication Protocol MODBUS RTU/ASCII & Multi Format
※ Block Name Define, Program Comment
※ Communication Baud Rate 921600 bps
※ Custom Truth Table, Without Logical Analysis
※ Multi Communication Parameter Function
※ Quick Calculation Of Nonlinear Equations
※ Random Generator Hardware
※ Free PC software"Edit"+"Utility"
※ The A-3288 Two-Way communicate Transmitter, EnhanceMessage Text function, edit controller program/parameter directly, stand by mode
※ Free iOS / Android APP "WStation-Pro", able to monitor the controller status and control Digital/Analog inputs directly
※ Able to connect Wi-Fi AP, Internet Of Things (IOT), remote control
※ Able to connect Wi-Fi range extender, to enhance the wireless operate range
※ Standard 2.4GHz IEEE 802.11 b/g (Wi-Fi)
※ 1 unit Wi-Fi controller base can communicate with 7 units Wi-Fi devices
※ Support Server/Station/Groups/Remote/Slave Mode
※ Able to use for Master or Slave application
※ Support MODBUS TCP/IP, MODBUS UDP/IP
※ Support WPA2-PSK(AES)
※ Able to set for Wi-Fi to MODBUS 3-port Gateways
※ Able to set for Wi-Fi to MODBUS 3-port Serial Device Servers
※ Adjustable transmission power
※ Data can be interchange by each controller
※ Built-in Current(0/4~20mA)/Voltage(0~10V)/PT-100 Input + Current Output(0/4 ~ 20mA)

Operation Voltage: 10~30VDC/24VDC
Inputs:4*DI(Isolation) status low:<2VDC status high:>4VDC
4*AI(0~10VDC)
Outputs: 4*Isolation(Relay)
Continuous Current: Relay:5A (with resistive load), 2 A (with inductive load)
Output Operating Frequency: Relay:30HZ
Input Operating Frequency: 250KHZ(Total 1000KHZ)
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports:Wi-Fi*1 & USB*1 & RS-485*2 & RS-232*1
Communication Baud Rate: 2400~921600bps
Degree Of Protection: IP20
Base Controller IOs: 12 IOs
Installation: 35 mm DIN rail or Flush mounting
Dimension (W x H x D mm): 76.4*118.2*40.7 mm
Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232 or Wi-Fi

Application Diagram:
