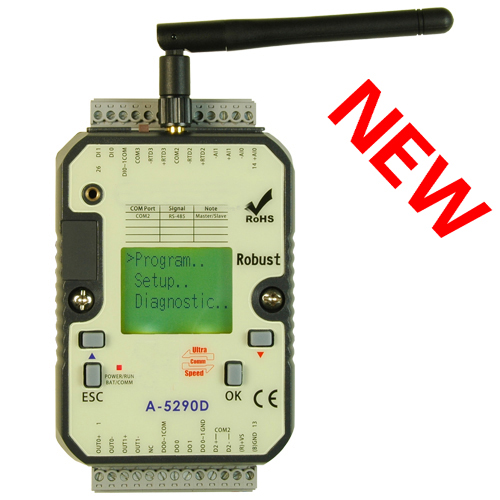

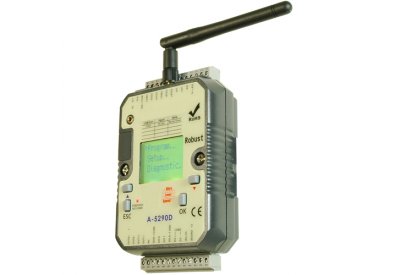

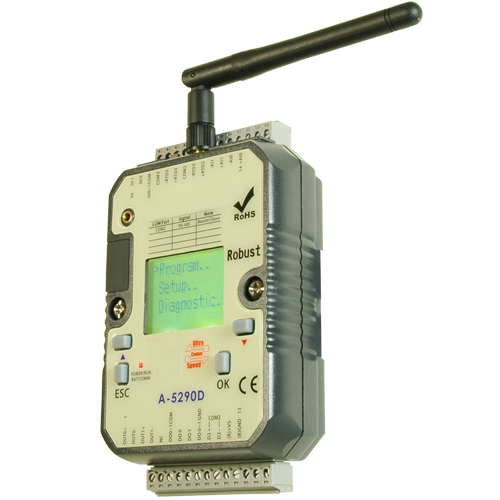

A-5290D

2DI,4AI(0/4-20mA or 2PT100),2DO,2AO(0/4-20mA) (WIFI Communication)
image_here
Part number: A-5290D
In Stock : Available

Product overview
Yottacontrol launched the product performance, stability, are leading the global industry with the world, has created numerous records of [the world] first, the follow-up will be performed with innovative concept to serve all sorts of different areas of application.

Product features

※ Creation of control programs in Function BlockDiagram (FBD)or Ladder Diagram (LAD)
※ 4-Axis Synchronous Motion, 100 KHz PWM (Total 400KHz)
※ Able To Edit The Parameter Among The Controller Operation
※ Multiple AUTO-PI Synchronous Function
※ Multi-Lingual Display Menu
※ Enhance Password & Safety Function
※ Text Display Can Be Pre-Programmed in Two Languages
※ Built-in Standard High Frequency Counter(250KHz per Input, Total 1000KHz)
※ Built-in Standard Real Time Clock (RTC)
※ PC Program Can be Used For All A-61/52/62 Series
※ ATP2 Text Panel Can Plug & Play Directly
※ Built-in Standard RS-485 Port, Connect More Than 10000 IOs Via Remote IO Module
※ Memory Card Which Has Copy & Password Protection
※ Connect Encoder & Multi-Sensors Directly
※ Built-in Step Motor Driver, Connect Directly
※ Built-in Datalog Function, MicroSD Plug-in
※ Display Text Display Diversity Patterns, Scrolling Text,Bar Charts, Indicators ....
※ 108 FBD Integrated Functions, 103 LD Integrated Functions
※ Astronomical Clock Function
※ ATP2 Text Panel Built-in Function Key
※ Digital Oscilloscope Function, Real-Time Monitoring
※ High-Level Math Functions
※ Communication Protocol MODBUS RTU/ASCII & Multi Format
※ Block Name Define, Program Comment
※ Communication Baud Rate 921600 bps
※ Custom Truth Table, Without Logical Analysis
※ Multi Communication Parameter Function
※ Quick Calculation Of Nonlinear Equations
※ Random Generator Hardware
※ Free PC software“Yotta Edit"+“Yotta Utility"
※ The A-3288 Two Way communicate Transmitter, Enhance Message Text function, edit controller

     program/parameter directly, stand by mode
※ Free iOS / Android APP "WStation-Pro", able to monitor the controller status and
 control

    Digital/Analog inputs directly
※ Able to connect Wi-Fi AP, Internet Of Things (IOT), remote control

※ Able to connect Wi-Fi range extender, to enhance the wireless operate range
※ Standard 2.4GHz IEEE 802.11 b/g (Wi-Fi)
※ 1 unit Wi-Fi controller base can communicate with 7 units Wi-Fi devices
※ Support Server/Station/Groups/Remote/Slave Mode
※ Able to use for Master or Slave application
※ Support MODBUS RTU Over On TCP/IP, MODBUS RTU Over On UDP/IP
※ Support WPA2-PSK(AES)
※ Able to set for Wi-Fi to MODBUS 3-port Gateways
※ Able to set for Wi-Fi to MODBUS 3-port Serial Device Servers
※ Adjustable transmission power
※ Built-in Current/Voltage/PT-100 Input + Current Output
※ Data can be interchange by each controller

Type

A-5290D

Operation Voltage

10-30 VDC/24VAC

Inputs

2DI(Isolation) (low:<2VDC/high:>4VDC)
2*Cirrent(0/4~20mA)+2*PT-100
(Range:-50~+200℃/Resolution:0.25℃)

Outputs

2*Isolation(Transistor)2* 0/4~20mA(Current)

Continuous Current

Relay:5A (with resistive load), 2 A (with inductive load) / Transistor:1.75A(OCP/OTP/UVLO)

Output Operating Frequency

Relay:30HZ / Transistor:100KHZ

Input Operating Frequency

250KHZ(Total 1000KHz)

RTC/ Hold During Power Off

Yes

Operation Temperatur

-20℃ - +75℃

Communication Port

Wi-Fi*1 & USB*1 & RS-485*1

Communication Baud Rat

1200-921600bps

Degree Of Protectio

IP20

Base Controller IO

12 IOs

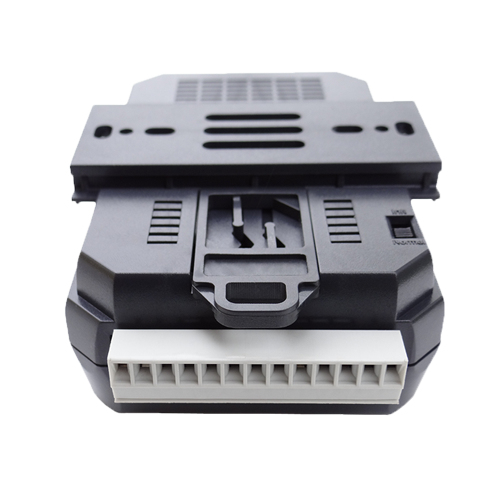

Installatio

35 mm DIN rail or Flush mountin

Dimension (W x H x D mm)

76.4*118.2*40.7mm

Communication Cabl

CAB-MINIUSB60 or RS-485





Size:

Unit:mm

Application Diagram:



The product packing list

  • A series of A-5290D
  • A specification
