A-1055

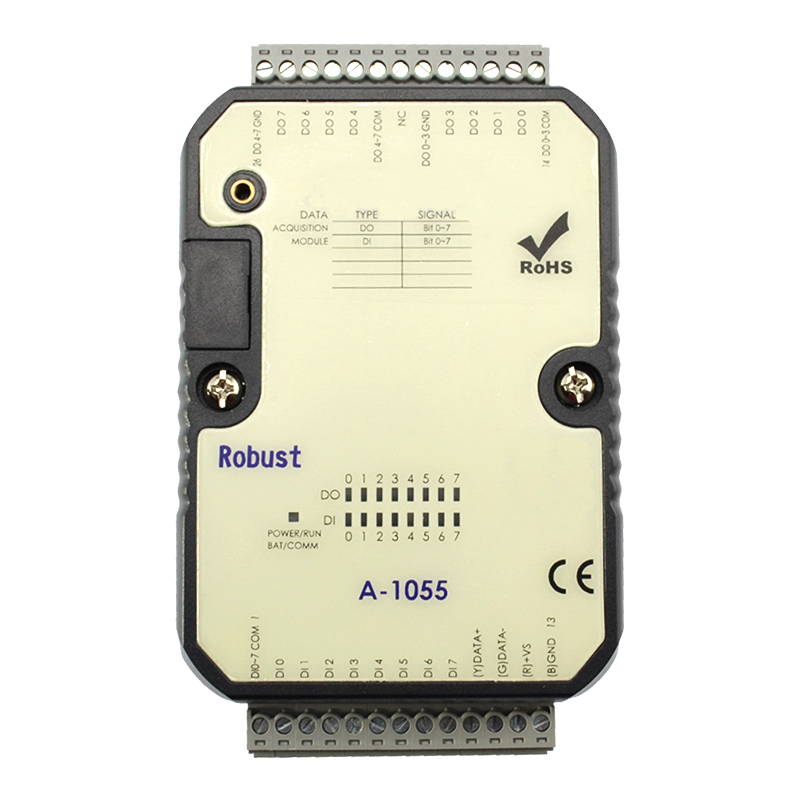

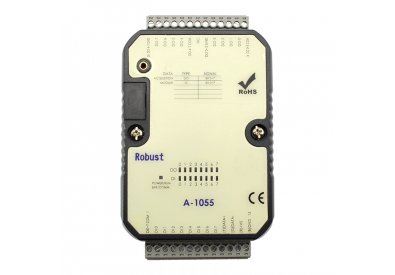

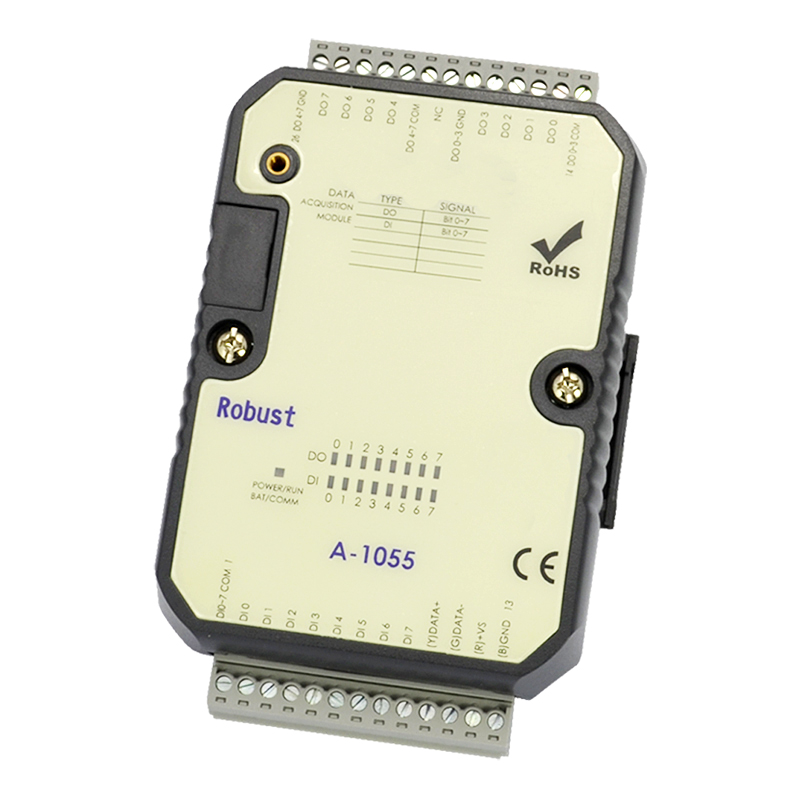

8DI 8DO Digital I/O Module
image_here
Part number: A-1055
In Stock : Available
User's Manual
Driver & software

A Series Remote I/O Modules

Model:A-1055

Product Features

  • RS-485 Interface
  • Supports Modbus RTU / ASCII
  • LED Indicators
  • Isolation voltage: 5000 V DC
  • Wide operation temperature : -20 ~ +75 °C
  • Dual watchdog timer
  • Surge , EFT and ESD protection
  • Free PC software “ Utility”

Technical Specifications

Inputs

8DI

Outputs

8DO(Sink Output)

Interface Type

RS-485

Support Protocols

ModBus RTU / ModBus ASCII

Data Rate

1200bps ~ 115200bps

Data Bit

8 bits

Parity

Odd, Even, None

Stop Bits

1,2 bits

Isolation Voltage

5000 VDC

Intput Rating

Logic Level 0

+1 VDC (Max)

Logic Level 1

+3.5~30 VDC

Output Rating(Max)

40VDC/200mA

Output Frequency 100Hz

Software

Configure Options

Utility

OS support

Windows XP/2000/2003/Vista/7

LED Indicators

POWER/RUN BAT/COMM

Orange/Orange/Flash

Input/Output

Red

Power Supply

10~30VDC

Power  Consumption

Nearly  24VDC  1.28W

Physical Characteristics

Installation

DIN-Rail Mounting

Housing

Plastic ABS

Weight

0.2Kg

Dimensions

118 × 76 × 40.7 mm

Operating Temperature

-20 ~ 75°C

Storage Temperature

-40 ~ 85°C

Ambient Relative Humidity

5% to 95%(non-condensing)

Standards and Certifications

RoHS, CE

Application Diagram:



The dimension of A-1055

The product packing list

  • A series of A-1055
  • A specification
