ATC-W3100G

GPRS Solutions for Serial Connections
image_here

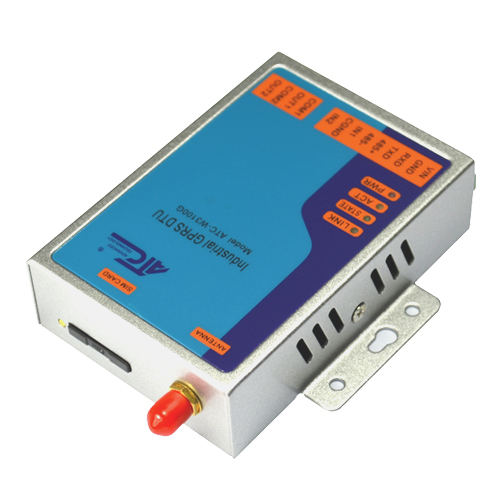

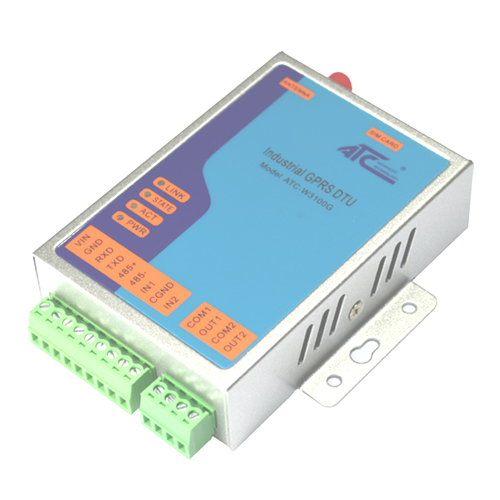

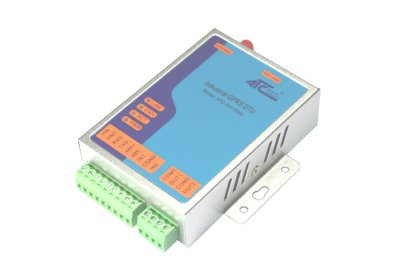

Part number: ATC-W3100G
In Stock : Available
Datasheet
Driver & software

W3100G is an embedded wireless data transmission module which is based on the GSM\GPRS network. This module has wide network coverage and easy to establishing network. And it is also a high reliability and low operation cost module.This module can bidirectional full transparent transmission between GPRS and UART so that you can connect you device to internet and make a convenient wireless remote communication. The Operating temperature range from -35’C to +80’C reaches the industrial standards. This module can be used for the Industry about industrial control, field communication, remote monitoring, intelligent power meter system, traffic control, meteorological phenomena monitoring, water conservancy monitoring, environment monitoring, Finance & Securities, LED information publishing system, mine, petroleum and so on. It is suitable for the center to multiple points system and medium or small transmission of dispersed multiple points system.

1、Two-way transmission support GPRS and UART interface

2、Industrial-grade high-speed ARM processor to ensure the reliability of data transmission

3、Operating frequency: 850/900/1800/1900 MHZ, applied internationally

4、Baud rate: 1200 to 1200 BPS, RS232 / RS485 / TTL UART support

5、Supports a variety of automatic networking: can realize one-to-one, one-to-many network

6、Whether can be set up on alarm threshold, alarm report automatic alarm function

7、Remote sleep and wake up, and support local serial port, SMS parameters configuration mode

8、DTU after permanent online, plugged into a power supply connected to the data center, dropped after automatically reconnect

9、Two road relay or switch output, two way switch input

10、IP or DNS login, automatically switches the primary and standby servers, supports TCP/UDP connection mode

11、Support special APN, data center, support fixed IP with dynamic DNS

12、By RT or wireless remote software updates

Serial lnterface
lnterface Type RS-232/485(optional)
Data Rate 1200bps - 115200bps
Data Lenght 7,8 bits
Parity Odd,Even,None
Stop Bits 1,2 bits
Connector RS-485/232
GSM lnterface
Frequency 850/900/1800/1900MHz
GPRS Speed Upload:1-2KB/s
Download:3-4KB/s
Output power Class4(2W@850/900MHz)
Class1(1W@1800/1900MHz)
SIM card Standard 3.3V 1.8V usar card interface
GPRS work voltage 3.4-4.5VDC
Work current Standby:<30mA@5VDC
Transmission:<200mA@5VDC
Emission peak value:<1.5A@5VDC
Alarm and Relay
Alam signal 3.0V - 12.0V@<30mA
Relay input/output 2A/1200V(AC)      2A/24V(DC)      1A/24V(DC)
OS support

Windows95/98/ME/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/

WIN7 x64/WIN8 x64/Linux real、TTY、UNIX

LED lndicators LINK GSM Link lndicator
STATE GSM State
ACT Date Transmitting between Serial and GPRS
PWR Power indicator
Power Supply 9-24VDC@1A
Physical Characteristics
lnstallation DIN-Rail Mounting
Housing lron(1mm)
Weight 0.5Kg

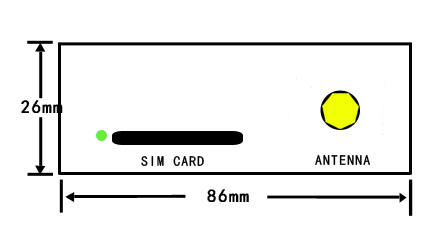

                                                      (1)

                                                       (2)



                                                       (3)

Wireless data transmission module can be used in industrial control, wireless communication, remote monitoring, intelligent power system, traffic control, weather monitoring, water control station management, environment detection, LED information system, mining industry and so on.Suitable for the control center for more equipment systems and control, as well as the small and medium-sized dispersive multi-point transmission system.

ATC-W3100G serial server 1PCS
Documentation and software CD 1PCS
Power adapter 9V  1PCS
One meter sucker antenna 1PCS
