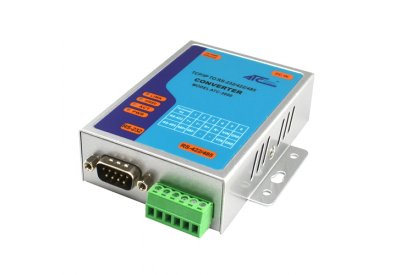

ATC-3000

Industrial Grade TCP/IP To RS-232/422/485 Converter

The Embedded Serial Server ATC-3000 is a gateway between Ethernet (TCP/IP) and serial device. It can be built into any facilities or equipments, and converts any serial port to Ethernet network.By using this unit, limited distance, point-to-point, direct serial connections can now be extended to the facility or equipment.In the industrial and manufacturing automation, ATC-3000 can be embedded into most field devices, include PLC, HMI, Bar-code Scanners and so on.Flexible configuration options allow the unit to be setup remotely over Ethernet by Telnet, web browser, or other windows utilities. It is not only a transparent, cost effective, network-enabled serial device, but also it is easy to install.



1、can through the web and software configuration

2、Support the virtual serial port

3、support Telne data communication

4、The RS - 485 automatic reverse

5、Front-end ports and serial ports are built-in lightning surge protection

6、Small size, easy to instal

Serial Interface

Interface Type

RS-232/485/422 3 in 1

Data Rate

300bps ~ 460.8Kbps

Data Length

5,6,7,8 bits

Parity

Odd, Even, None, Space, Mark

Stop Bits

1,1.5,2 bits

Flow Control

None, Software: Xon/Xoff, Hardware: RTS/CTS

Connector

RS-232

DB-9 male

RS-485/422

6-pin Terminal block

Serial Line Protection

15 KV ESD and 600W Surge protection

Network Interface

Interface Type

Ethernet 10/100Mbps (Auto-Sensing), Half/Full/Auto duplex

Connector

8-pin RJ-45

Isolation Protection

Built-in 1.5KV

Software

Network Protocols

ARP, UDP/IP, TCP/IP, PING/ICMP, DHCP, BOOTP, Auto IP,TFTP, SNTP ,TELNET ,HTTP,

DNS,SMTP, PPP, LCP, PAP, CHAP, IPCP, PPPoE,HTTPS

Configure Options

Web Page,Windows Utility,Telnet

Security

Username and Password for Webpage management

OS support

Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/WIN7 x64/WIN8 x64、

Linux real、TTY、UNIX

System

CPU

Embedded high-performance 32-bit network processor, 32-bit RISC (NP7/9 series),100MHz

Memory

32MB RAM, 64MB flash

LED Indicators

LINK

Link Activity Indicator

SPD

10/100Base-TX Indicator

ACT

Data Transmitting between Serial and Ethernet Indicator

PWR

Power indicator

Power Supply

9~32VDC (Power consumption : 250mA max)

Physical Characteristics

Installation

DIN-Rail Mounting

Housing

Iron (1mm)

Weight

0.5Kg

Dimensions

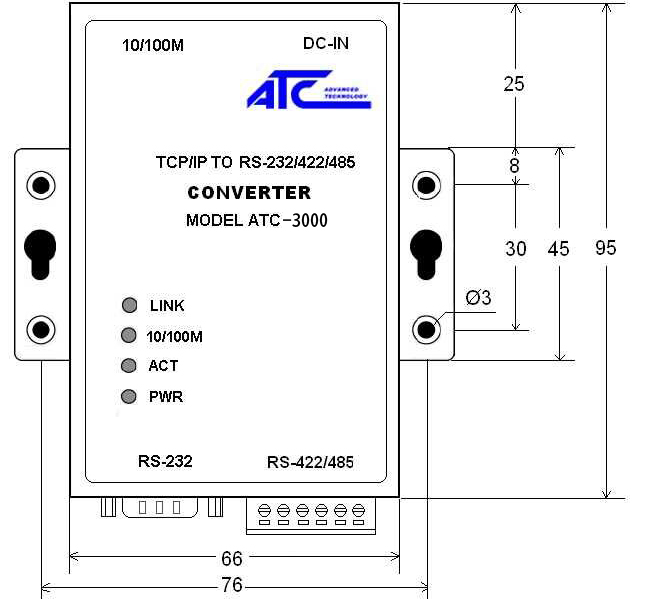

Without ears : 100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in)

With ears : 100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)

Environmental Limits

Operating Temperature

-25 ~ 70°C (-13 ~ 158°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 176°F)

Ambient Relative Humidity

5% to 95% (non-condensing)

Standards and Certifications

RoHS, CE, FCC



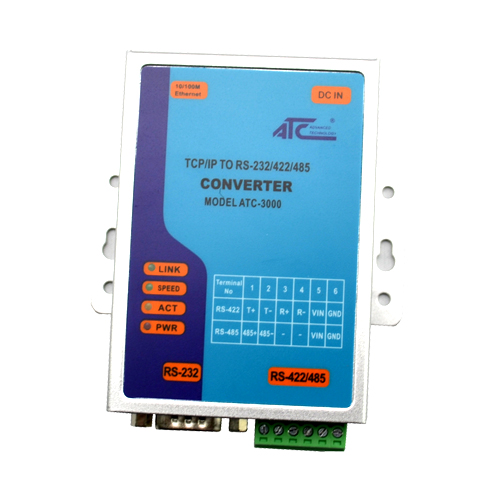

                                                        (1)



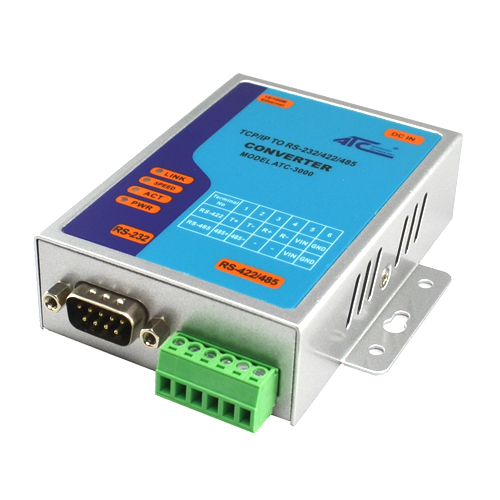

                                                           (2)



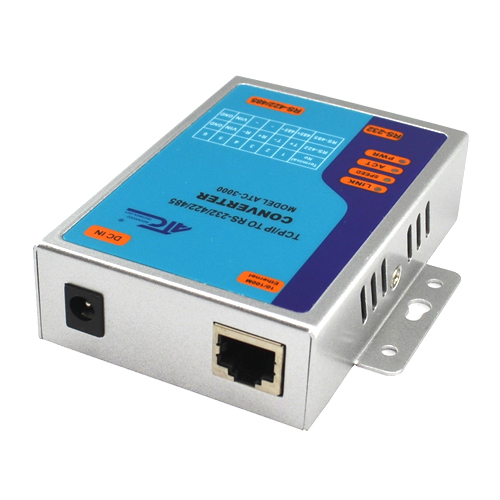

                                                         (3)

Company products are widely applied and electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective.ATC-3000 is an industrial Ethernet serial servers, with three-in-one functionality, lightning protection, support for many network protocols and adaptability, at a relatively harsh conditions also can work as usual, such as: oil, dams, steel mills, iron works, and so on. . .Working environment up to -40 ℃ to 70 ℃

ATC-3000 unit 1PCS
Documentation and software CD 1PCS
Power adapter (EU、SU、AU、CN)9v@1A 1PCS
ATC-3000Instructions Book 1PCS

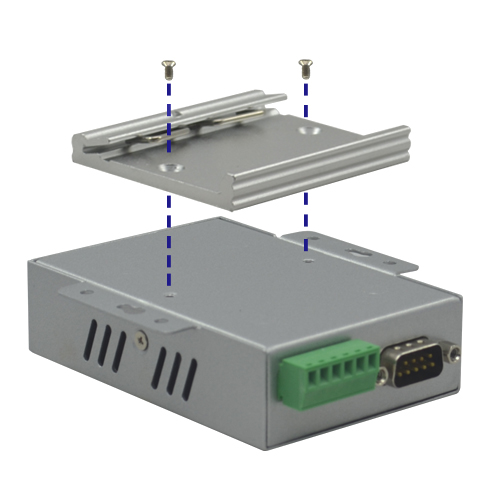

Din Rail Mounting Bracket ( for choosing accessory)
