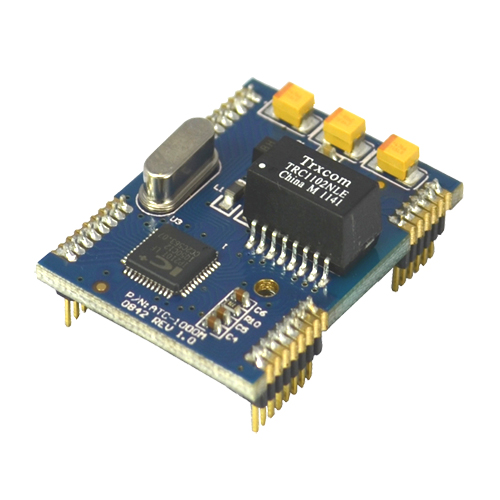

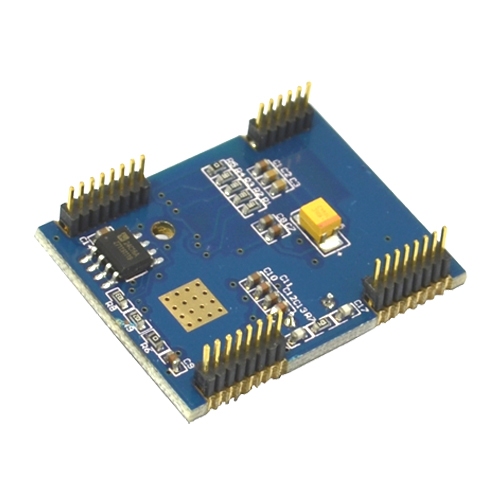

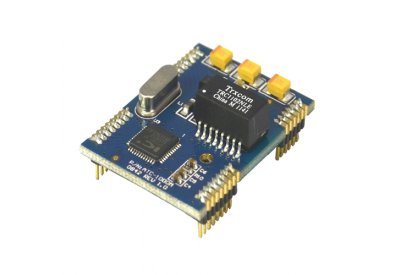

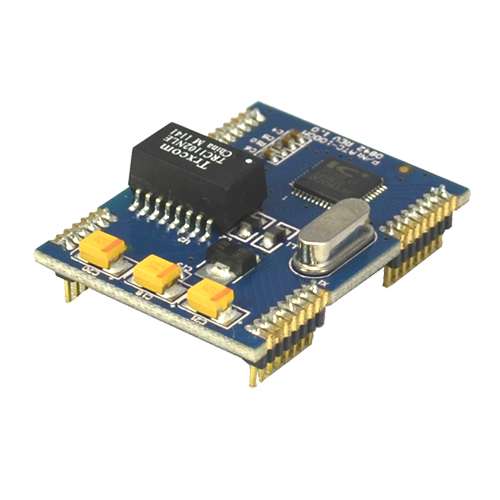

Low Cost TCP/IP To Serial Embedded Module ATC-1000M

 1.Adds Ethernet connectivity for RS-232/422/485 devices

   2.10/100Mbps Ethernet; 230,400bps serial data rate

   3.Supports TCP/Server, TCP/Client and UDP mode

   4.Provides six TTL-level programmable digital I/Os

   5.Web/Telnet/Serial consoles for device configuration

   6.Windows utility included for device management

A serial port (TTL - level)
semaphore TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Baud rate 300bps ~ 230.4Kbps
data bits 7,8 bits
Parity efficacy Odd, Even, None
stop bit 1,2 bits
data flow control Xon/Xoff, RTS/CTS
interface communication 10/100 MBPS Ethernet adaptive
communication protocol TCP, UDP, HTTP, Telnet, IP, ICMP, ARP
IP configuration DHCP, Static IP
mode of operation TCP/Server, TCP/Client,UDP
collocation method Web pages, software configuration
operating system support

Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/WIN7 x64

/WIN8 x64、Linux real、TTY、UNIX

genre 30 double needle inline pin type module
interstice 1.27mm
size 37*27*12(mm)
Programmable data I/O PIO0 ~ PIO6: compatible with TTL level
supply voltage 3.3VDC@350mA
work environment
operating temperature -40 - 70℃
storage temperature -40 - 85℃
operating humidity 5%-95%(No condensation)
maintenance two year
approval standards RoHS 、CE 、FCC


Our products are widely used in electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective, timely and thoughtful service. ATC-2000M is a 10M / 100M serial networking conversion module

ATC-1000M unit 1PCS
ATC-1000Instructions Book 1PCS
