Computer Specifications：
1. OS: Windows XP, Windows 7, Linux
2. Storage: SSD 16-120 GB
3. CPU: Core i5-7 3rd generation
4. Memory: 2-4 GB DDR3 1333Mhz support
5. System chipset: Intel® HM76
6. Graphics chipset : HD 4000
7. Ethernet LAN #1 : 10 / 100 / 1000
8. Audio chipset : IDT 92 HD 81
9. BIOS : AMI APTIO
10. Power manager: ACPI 3.0
Power Specifications:
1. Multi-power supply: 9-12VDC or 20-36VDC
2. Power consumption: >50W
Physical considerations:
1. General dimensions: H292 mm X W367 mm X D45 mm
2. Weight: 3.7 kg / 8.2 lbs

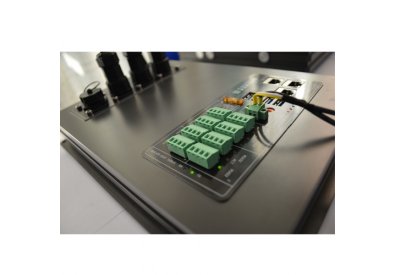

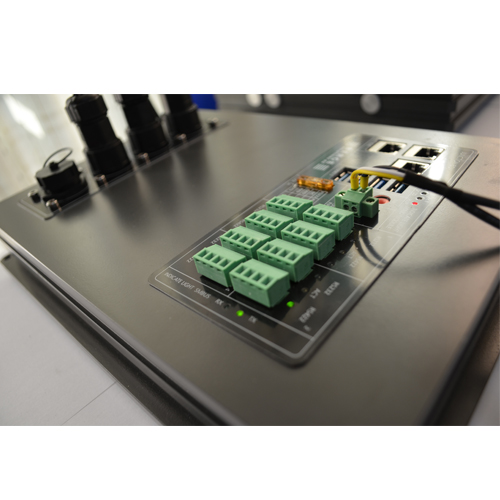

Input / Output connectors:
1. Ethernet Gbit RJ45: 1 Port
2. USB 2.0: 3 Ports
3. USB 3.0: 1 Port
4. Sound output jack: Yes
User Controls:
1. Power: On / Off
2. Backlight Up / Down: 0-100% dimming
Environmental considerations:
1. Operating Temperature:(-)15 to (+)55 degrees Celsius
2. IP rating: 69 K
Safety considerations:
Even though test conditions for bridge units provide for a maximum
operating temperature of 55 °C , continuous operation of all electronic equipment should take place at an ambient temperature of only 25 °C .
This is a necessary precaution to assure a long life and low service costs.
