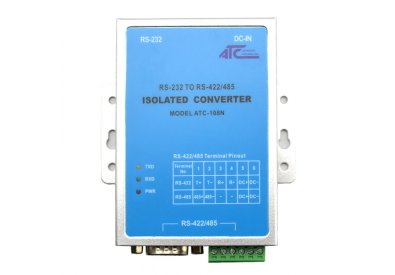

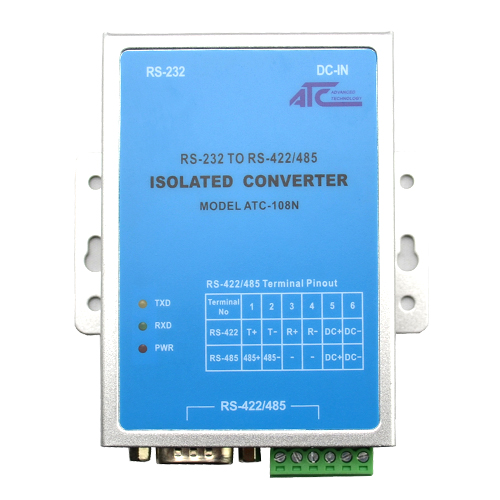

ATC-108N

Industrial Class Wall-mounted Photoelectric Isolation Converter RS-232 to RS-485/422
image_here
Part number: ATC-108N
In Stock : Available

ATC-108N Isolation Interface Converter is compatible with RS-232C, RS-422, RS-485 standards and capable of converting single end RS-232 signal into RS-422 or RS-485 signal of balanced signal. The built in photoelectric isolator can offer 3500V isolation voltage and the rapid Transient Voltage Suppressor (TVS) can effectively inhibit lightning and ESD, prevent lightning strike and common code interference.

Connect PC,IPC,or portable computer via a DB9 female connector at RS-232 interface, and connect RS-422, RS-485 end via convenient 4-bit terminal. The RS-485 supports dual-line half duplex.The inner circuit of ATC-105 Photoelectric Isolation Interface Converter can detect data direction and switch to control it automatically, conveniently to form a RS-485 network without any shake hand signal. This kind of RS-485 control is fully transparent and need no software amendment for the former working modes basing on RS-232.

ATC-108N Photoelectric Isolation Interface Converter can provide credible connection for point to point, point to multi-point communication. The point to multi-point allows connecting 256 RS-422 or RS-485 interface devices with data transmission speed of 0-115.2KBPS. The 3 power supply and data flow indication light can indicate malfunction. It supports communication modes including RS-232C to RS-422, RS-232 to RS-485 conversion.

  • Point to point, point to multipoint communication
  • Industrial distribution system, industrial control automation
  • Road traffic control automation
  • Closed circuit monitoring
  • Security protection system
  • Intelligent card, check on work attendance gate safety system

Communication Parameters

Interface

Compatible with EIA/TIA RS-232C,RS-485/422

Transmission Media

Twisted-pair cable or shielded cable

Working Mode

Asynchronous half or full duplex

Direction Control

Automatic direction control of transmitting data (TXD), zero-latency design

Baud Rate

300-115.2kbps

Transmission Distance

0-5 Km

Connector

RS-232

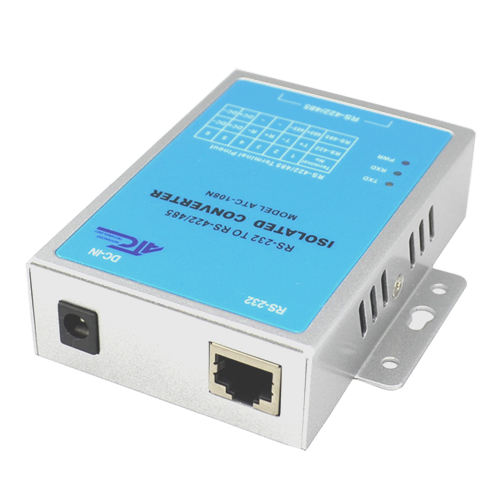

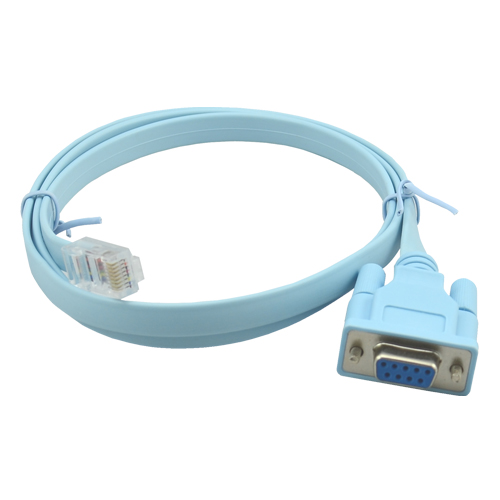

RJ-45 connector, Equipped with DB9

RS-485/422

DB9 connector and terminal block

Load Capacity

Point to multi-point, allow to connect 256 RS-422 or RS-485 interface device

Isolation

3500VRMS,500VDC sequence

Protecting Grade RS-232 interface 600W lightning strike and surge protection, RS-422, RS-485 interface 1000W lightning strike and surge protection on each line

Power Supply Parameters

Power Supply

External power supply at RS-232 end

DC/DC Isolation power supply at RS-422/485 end

Physical Characteristics

Signal Indication

3 signal indication lights indicate TXD RXD and PWR

Housing

Iron

Weight

0.6Kg

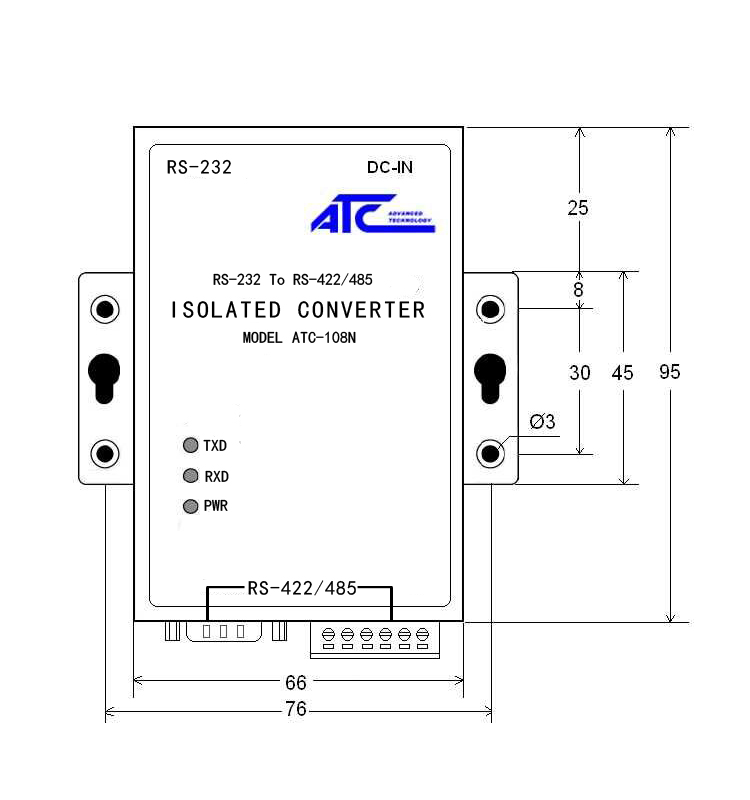

Dimensions

100 x 86 x 26mm

Operating Temperature

-20 ~ 70°C (-4 ~ 158°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 176°F)

Ambient Relative Humidity

5% to 95%(non-condensing)

Standards and Certifications

RoHS, CE, FCC


Company products are widely used with the electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart CARDS, and other industries, production and sales of the products of the company, supporting complete, cost-effective, timely and thoughtful service, products are exported to Taiwan, Hong Kong, South Korea, Thailand, the United States, Poland, Italy, Spain, Egypt, Russia, Norway, Singapore, Malaysia, Indonesia, and other national regions, well received by clients at home and abroad.

ATC-108N 1PCS
Documentation and software CD 1PCS
Power adapter (EU、SU、AU、CN)9-24V@1A 1PCS
ATC-108N Instructions Book 1PCS

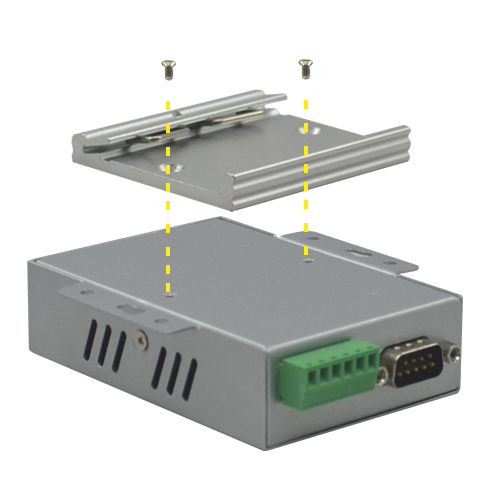

Din Rail Mounting Bracket ( for choosing accessory)
