A-1188D

8DI,4DO relay output PLC

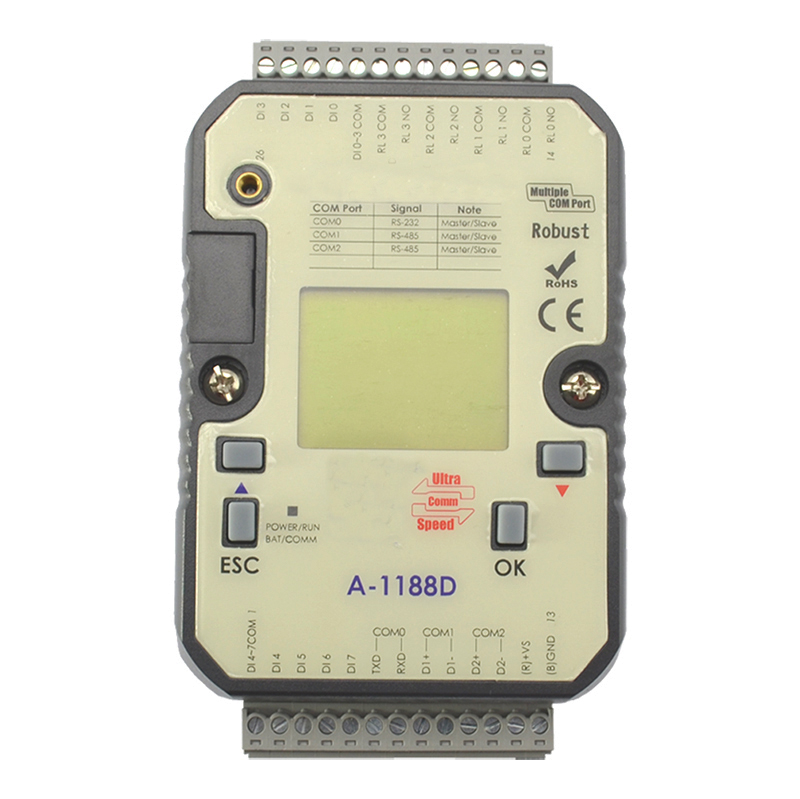

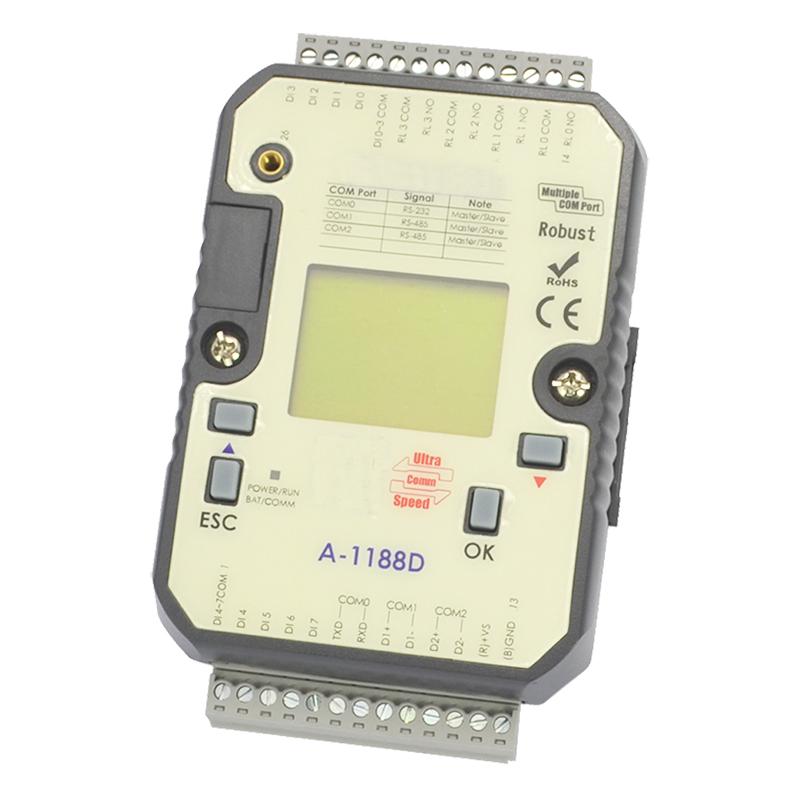

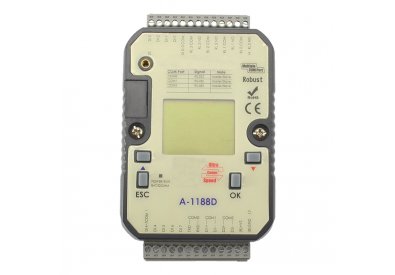

image_here
Part number: A-1188D
In Stock : Available
Datasheet
Driver & software

Product overview
ATC launched the product performance, stability, are leading the global industry with the world, has created numerous records of [the world] first, the follow-up will be performed with innovative concept to serve all sorts of different areas of application.
Product features
1, the function block (FBD) trapezoidal round editing system (LD)
2, 4 axis control at the same time, the transverse pulse output up to 100 KHZ bandwidth 400 KHZ (total)
3, password, and security features to strengthen
4, built-in timer high-speed measurement (250 KHZ, total bandwidth 100 KHZ)
5, built-in integration clock/maintain power
6, communication speed to 921600 BPS
7, high order mathematical functions
Number 8, communication control, time and other fine function
9 "Edit + Utility", free software

Technical Specifications

Inputs

8DI

Outputs

4DO(Relay Output)

Interface Type

RS-485*2,RS-232

Support Protocols

ModBus RTU / ModBus ASCII

Data Rate

1200bps ~ 115200bps

Data Bit

8 bits

Parity

Odd, Even, None

Stop Bits

1,2 bits

Isolation Voltage

5000 VDC

Integrated time

switches/reserve power

Yes / > 2 years

Linking of functions

1024(Max)

Intput Rating

Logic Level 0

+1 VDC (Max)

Logic Level 1

+3.5~30 VDC

High speed input

DI0~DI3 (15KHZ)

Output Rating(Max)

5 A for resistive load, 2 A for inductive load

Output Frequency

30Hz(relay output)

Software

Configure Options

 Utility / Editor

OS support

Windows XP/2000/2003/Vista/7

LED Indicators

POWER/RUN BAT/COMM

Red/Green/Green

Input/Output

Red

Power Supply

10~30VDC

Power  Consumption

Nearly  24VDC  2.28W

Physical Characteristics

Installation

DIN-Rail Mounting

Housing

Plastic ABS

Weight

0.2Kg

Dimensions

118 × 76 × 40.7 mm

Operating Temperature

-20 ~ 75°C

Storage Temperature

-25 ~ 80°C

Ambient Relative Humidity

5% to 95%(non-condensing)

Standards and Certifications

RoHS, CE



Application Diagram:





The product packing list
A-1188D product one
A-1188D A product specification
