ATC-101
Product overview

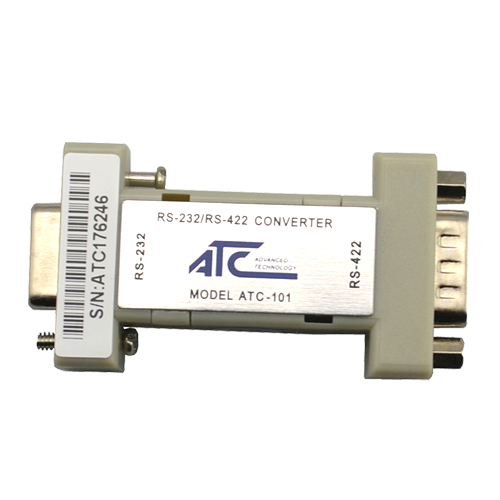

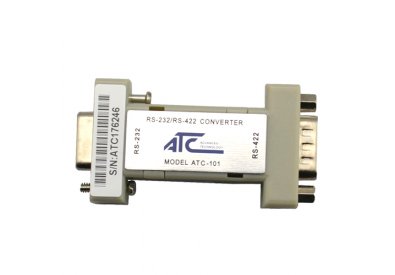

ATC - 101 interface converter can send the signal RS–232C serial port data (TD) and receive data (RD) into four line balance of the half-duplex RS-422 signal. It is the best choice of a remote Control device or point to multipoint communication bus. The interface transition device don't need ac/dc converter, it can be directly from the Data within the RS-232 port transmitter data (TD), request to Send (RTS) or Data terminal ready (DTR) to obtain power. It also have the Automatic Send Data Line Control function. When to Send and receive Data, do not need the RTS control. So the power supply from serial port and Automatic flow Control makes you don't have to reset the hardware or install software. Improve the surge protection, can ensure the safety of the RS-422 network.
Features
- DB9-S/P space saving connector
- RS-232C data interface fully compatible with PC

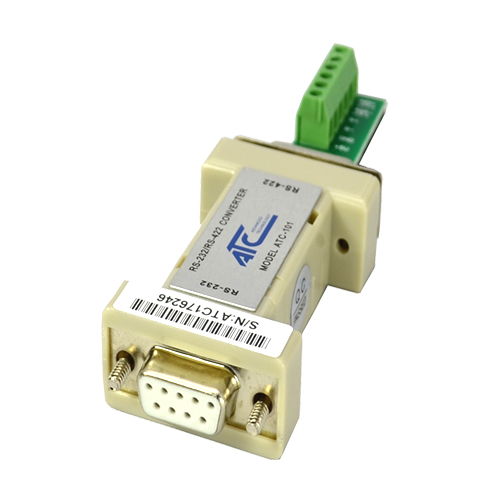

- DB9 connector and terminal are optional to RS-422 interface
- Automatic direction control of transmitting data (TXD), zero-latency design
- Working mode ：Asynchronous half duplex
- High efficiency serial port electricity stealing technology, need no external power supply, real three line (TD, RD, GND) mode communication
- Communication speed: 0-115.2kbps
- ransmission distance: 0-1200 meter@24AWG
|
Communication Parameters |
|||
|
Interface |
Compatible with the EIA/TIA RS-232-C and RS-422 standard |
||
|
RS-232 |
TD, RD, GND |
||
|
RS-422 |
T+, T-, R+, R-, GND |
||
|
Working Mode |
Point to point or point to multipoint, asynchronous half duplex(four line) |
||
|
Direction Control |
Automatic Send Data Line Control, automatic identification and control data transmission direction |
||
|
Baud rate |
300-115.2kbps，automatic detection rate of serial port signals |
||
|
Transmission Distance |
RS-422 side 1200 meters (19.2 kbps), RS-232 side suggest no more than 10 meters |
||
|
Connector |
RS-232 |
DB-9 male |
|
|
RS-422 |

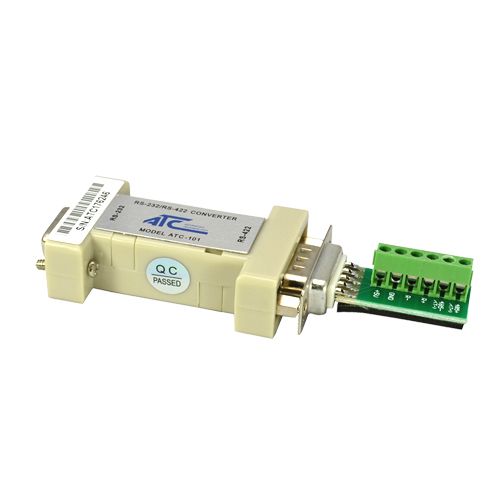

DB9 male or 6-pin Terminal block |
||
|
Load Capacity |
Maximum connections of 32 nodes（64,128,256 can be customized） |
||
|
Power Supply Parameters |
|||
|
Power Supply |
Without external power supply. Equipment from RS-232 port TXD, RTS, DTR signal for power supply. |
||
|
Power Consumption |
Static power consumption within 10 mA, dynamic average power consumption of 40 mA |
||
|
Physical Characteristics |
|||
|
Housing |
Plastic shell |
||
|
Weight |
0.45Kg |
||
|
Dimensions |
88mmx33mmx17mm |
||
|
Environmental Limits |
|||
|
Operating Temperature |
-20 ~ 70°C (-4 ~ 158°F) |
||
|
Storage Temperature |
-40 ~ 85°C (-40 ~ 176°F) |
||
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
||
|
Standards and Certifications |
|||
|
RoHS, CE, FCC |
|||
