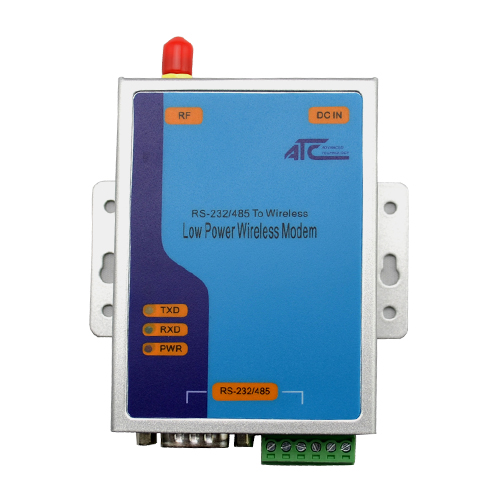

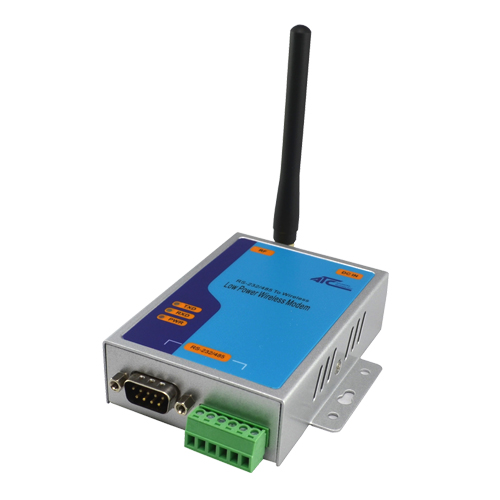

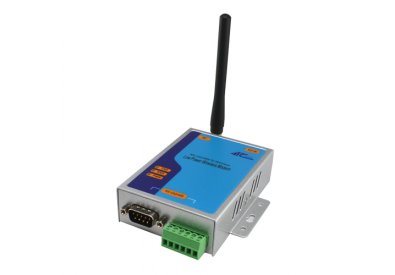

ATC-863

RS-232/485 Mini Power Wireless Module 300m
image_here
Part number: ATC-863
In Stock : Available
Datasheet
User's Manual
Driver & software

ATC - 863 micropower wireless data transmission module, is a kind of short distance wireless data transmission products.Its small size, low power consumption, high stability and reliability, can provide users with a two-way data signal transmission, detection and control.Three tables for gas, parking lot parking meter, smart card, access control attendance, electronic weighing apparatus, wireless queuing, building control, freight logistics, anti-theft alarm, intelligent instrument and meter, intelligent teaching facilities, physical detection intelligent equipment, measurement equipment, automobile black box, automatic control, intelligent household in the areas of data control and data acquisition.




1, low power data transmission
2, visual distance transmission of up to 300 m (863), 500 m (871), 1 km (873), 2 km (875).
3, based on FSK modulation method/GFSK, efficient communication protocols, good reliability, low bit error rate
4, data transparent transmission, transmission is longer than the data frame
5, at the same time provide the RS - 232 / RS - 485 / TTL level interface, optional I/O port

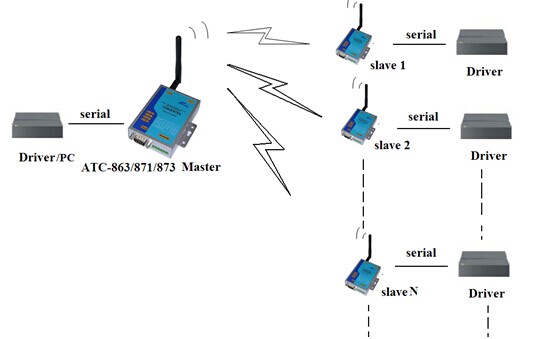

6, can be used to point to point, point to multipoint, multi-point to peer communication mix a variety of ways
7, intelligent control, data users need extra program
8, carrier frequency 433 MHZ, also can provide 315/868/915 MHZ carrier frequency
9, watchdog real-time monitoring, an external antenna is optional

                      (1)



                         (2)



                        (3)

Company products are widely used with the electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart CARDS, and other industries, production and sales of the products of the company, supporting complete, cost-effective, timely and thoughtful service.ATC - 863 is a low rate of data transmission, visual distance transmission distance 300 m wireless data transmission products.Can provide users with a two-way data signal transmission, detection and control.Three tables for gas, parking lot parking meter, smart card, access control attendance, electronic weighing apparatus, wireless queuing, building control, freight logistics, anti-theft alarm, intelligent instrument and meter, intelligent teaching facilities, physical detection intelligent equipment, measurement equipment, automobile black box, automatic control, intelligent household in the areas of data control and data acquisition, etc.

ATC-863product 1PCS
ATC-863Instructions Book 1PCS
ATC-863Power Adapter(EU、US、AU、CN)9V@1A 1PCS
ATC-863 Antenna 1PCS
Din Rail Mounting Bracket ( for choosing accessory)
