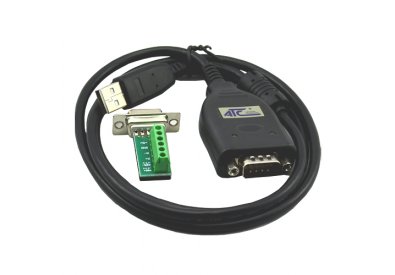

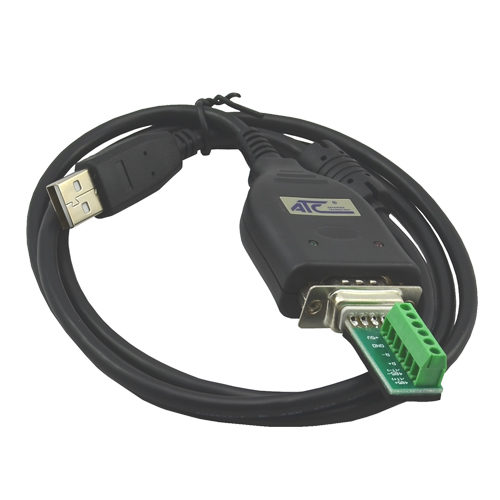

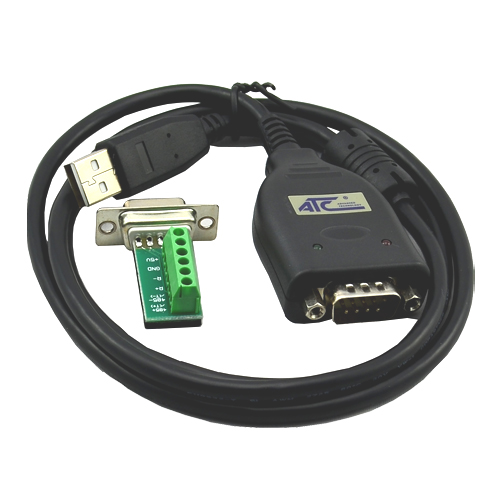

ATC-830

USB To TTL Converter

The ATC-830 module is a cost-effective way to convert TTL signal a USB interface. When connected to a PC USB port the ATC-830 module is automatically detected and is installed as a native COM port which is compatible with any existing serial communication application. When using USB hubs thus allowing a hassle free configuration of a multi serial system without any IRQ or DMA configuration.

They have 600W protect between the USB port and TTL protects the PC from spikes or possible misconnections in the communication bus.


◆ use FTDI chipset industry.
◆ compatible USB1.1,2.0, the maximum rate of up to 12Mbps.
◆ Support remote wake-up and power management.
◆ no need to set I / O location and IRQ, friendly user interface.
◆ serial transmission speeds of up to 921.6kbps.
◆ supports hot swap and PnP.
◆ Support for Windows 98 / ME / XP / 2000 // 7/8 / CE / Vista, MAC & Linux 2.4.20.
◆ Interface electrostatic protection, signal lightning surge protection.

1 USB to TTL Converter

2 Computer interface: USB V1.1 2.0 Plug and Play

3 Operational system virtual serial port driver

4 Supports Windows 98/ME/XP/2000/CE, MAC & Linux

5 2.4.20 or superior

6 Field Interfaces:TTL logic

7 Transmission rate: from 300 bps to 1Mbps

8 Maximum TTL cable length : 15 m

9 Power: from the USB port

10 Consumption: <100 mA

11 logic protection: 600W

12 USB connection: Mini-B connector.120mm cable with the module

13 TTL logic connector: DB 9 Male type accepting

14 ABS enclosure: 55mm*35mm*15 mm (not include cable)

15 Operating environment: 0°C to 70°C, 10 to 90% relative humidity, non-condensing

Company products are widely used with the electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart CARDS, and other industries, production and sales of the products of the company, supporting complete, cost-effective, timely and thoughtful service.ATC - 830 is a USB transfer RS - TLL interface converter, 600 w surge protector, protect the equipment from lightning.Products are widely used in the attendance, entrance guard, selling rice, monitor, car park management, and other fields.Good product not only implement different signal transformation, communication, also let your computer extend the serial port resources.

ATC-830Products 1PCS
ATC-830user's manual 1PCS
ATC-830 CD 1PCS
