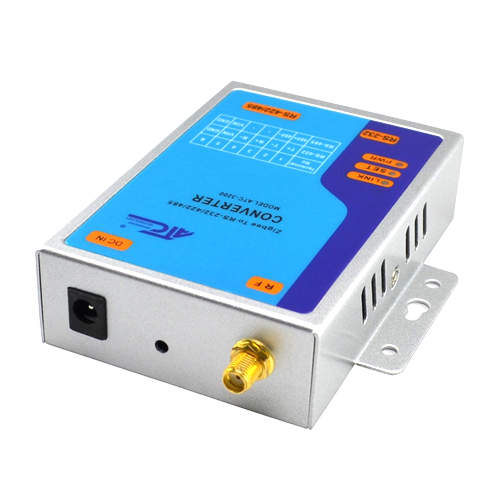

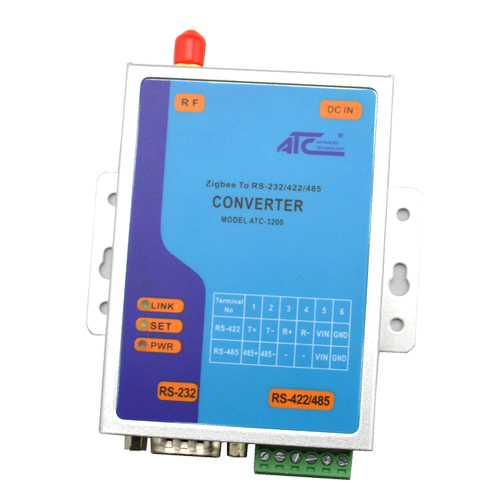

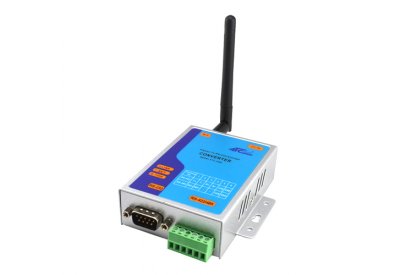

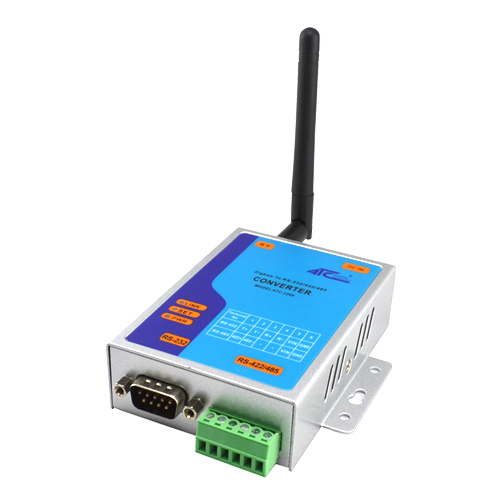

ATC-3200

Zigbee to RS232/422/485 Converter
image_here
Part number: Zigbee to RS232/422/485 Converter
In Stock : Available
Datasheet
User's Manual
Driver & software

The ATC-3200 is a cost effective and highly integrated Serial-to-Zigbee wireless Converter. Built on ZigBee technology, the ATC-3200 is ideal for a range of applications from simple RS-232 cable replacement to sophisticated multi-drop RS-485 networks and everything in between. Available in RS-232/RS-422/RS-485.ZigBee is the global wireless language connecting dramatically different devices to work together and enhance everyday life. The ZigBee Alliance is a non-profit association of more than 280 member companies driving development of ZigBee wireless technology. The Alliance promotes world-wide adoption of ZigBee as the leading wirelessly networked, sensing and control standard for use in energy, home, commercial and industrial areas.

1、The full signal 2.4 G ISM band is available

2、Instructions via a serial port configuration and control

3、65535 nodes address, IDs allows multiple large network coexistence

4、Programmable transmission power output, the maximum of 12 DBM

5、Compatible with ZigBee and IEEE 802.15.4 standard

6、Receiving sensitivity - 102 dBm

7、Visual transmission distance of 100 meters, 12 DBM/PA and - 102 DBM/LNA

8、A variety of low power operation mode

9、RS - 485/232/422 triad serial port, the highest rate of 57.6KBPS

10、Support line 2 and line 4 RS - 485 adaptive traffic control transfer

11、Support 9-24 VDC power supply input

12、RS - way convenient 422/485 terminal connection

13、A variety of parameters of simple configuration software

14、Through the CE, RoHS certification

Serial Interface
Interface Type RS-232/485/422(optional)
Connector RS-232 DB9(Male)
RS-485/422 6-pin Teminal block
LED Indicators SET Indication Zigbee Link yellow on Zigbee Link establised
LINK Data Sending/Receiving between Senrial and the Zigbee
PWR Power indicator
Power Supply 9-24VDC@1A
Physical Characteristics
Installation DIN-Rail Mounting
Housing lron(1mm)
Weight 0.5Kg

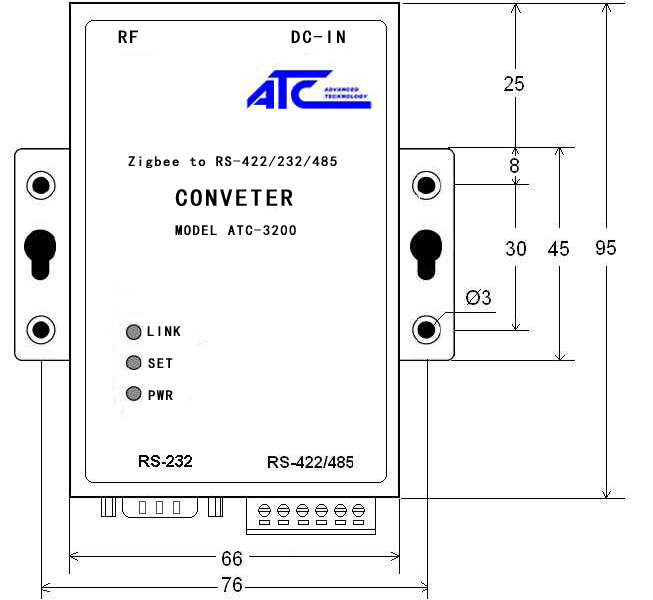

Dimensions 100*86*26mm(3.94*3.39*1.02in)
Environ mental Limits
Operating Temperature -35 - 70℃
Storage Temperature -45 - 125℃
Standards and Certifications RoHS,CE



                                                     (1)

                                                      (2)



                                                       (3)



Company products are widely used with the electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart CARDS, and other industries, production and sales of the products of the company, supporting complete, cost-effective, timely and thoughtful service.ATC - 3200 is a turn using Zigbee wireless 232/422 / RS - 485 serial converter, Zigbee wireless local area network (LAN) as a leading wireless networks, sensor and control standard, used in energy, household, commercial and industrial fields.Application in far remote industrial wireless remote control, data acquisition process, the meteorological and hydrological monitoring, building automation, personal LAN, attendance management system, POS system, machine room monitoring, PC peripheral devices.

ATC-3200 Product 1PCS
ATC-3200 Instructions Book 1PCS
ATC-3200 Power Adapter(EU、US、AU、CN)9V@1A 1PCS

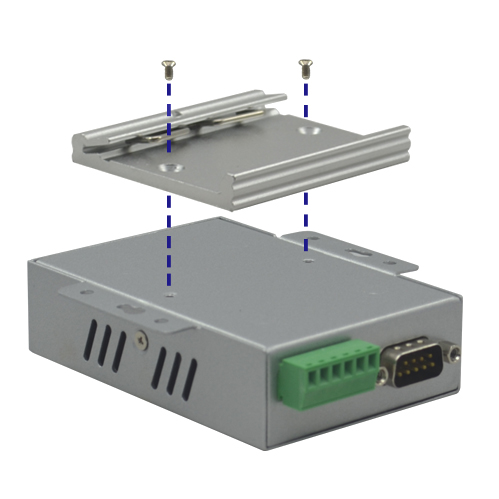

Din Rail Mounting Bracket ( for choosing accessory)
