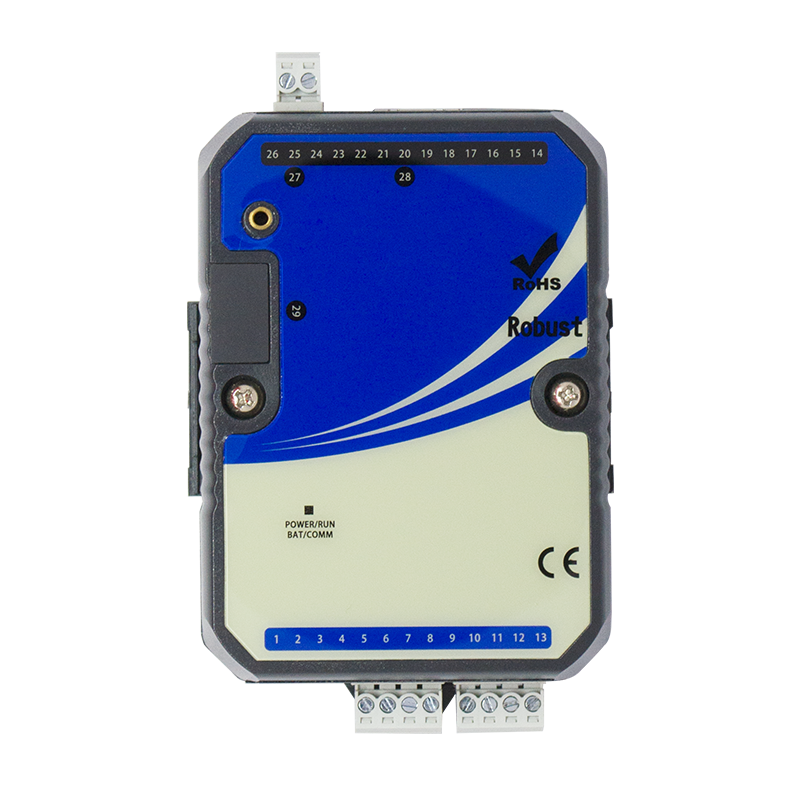

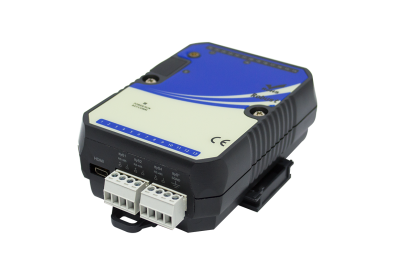

A-9N Edge Computing Controller
The A-9N provided by ATC is a Fanless Edge Computing Controller for Ethernet and serial port.
Compared with traditional Industrial controllers, various interfaces help mutual data exchange, and shared program support various industrial projects.

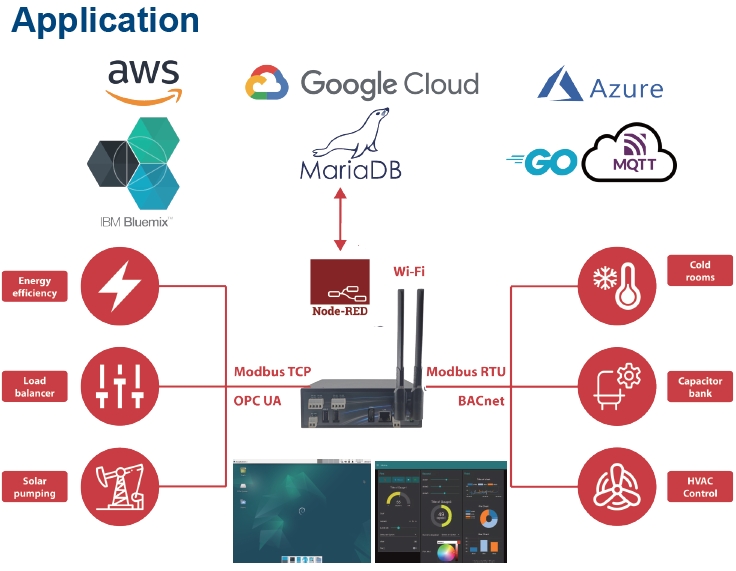

The A-9N can be used for Ethernet data transmission and other functions through its third party 4G / 5G communication module. With the third party GPS function, the A-9N can also be used as a GPS tracking system for vehicle management or maritime system. It can be used in M2M application to transmit remote I/O, Modbus data or camera video.
Within the high-performance CPU, the A-9N can process large amounts of data and is suitable for harsh industrial environments.
CPU
TI Cortex-A8 ARM 1GHz
Memory
DDR3 512MB onboard
Storage
eMMC 8GB onboard
Expansion
1 x USB 2.0 Host for Wi-Fi module / USB-HUB / KEY-board ....
I/O Interface-Front
1 x Power LED
1 x RJ-45 10/100M fast Ethernet with LED
1 x USB Host 2.0 type A
1 x Phoenix connector for power (24~36VDC)/GND/ignition input
I/O Interface-Rear
1 x HDMI for 1920 x 1080@60Hz output
3 x RS-485
Power Consumption
Max 10W
Power Management
Auto Boot
Operating System
Linux (Debian 11.5)
Built-in NODE-RED
Dimensions
72mm (W) x 118mm (D) x 34mm (H)
Weight
0.2kg
Environment
Operating temperatures: -20°C to +70°C
Storage temperatures: -20°C to +85°C
Relative humidity: 90% (non-condensing)
