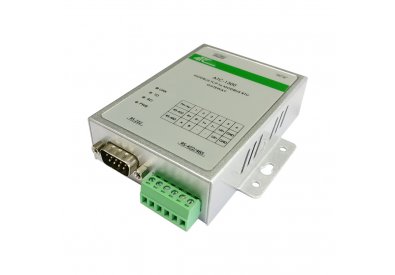

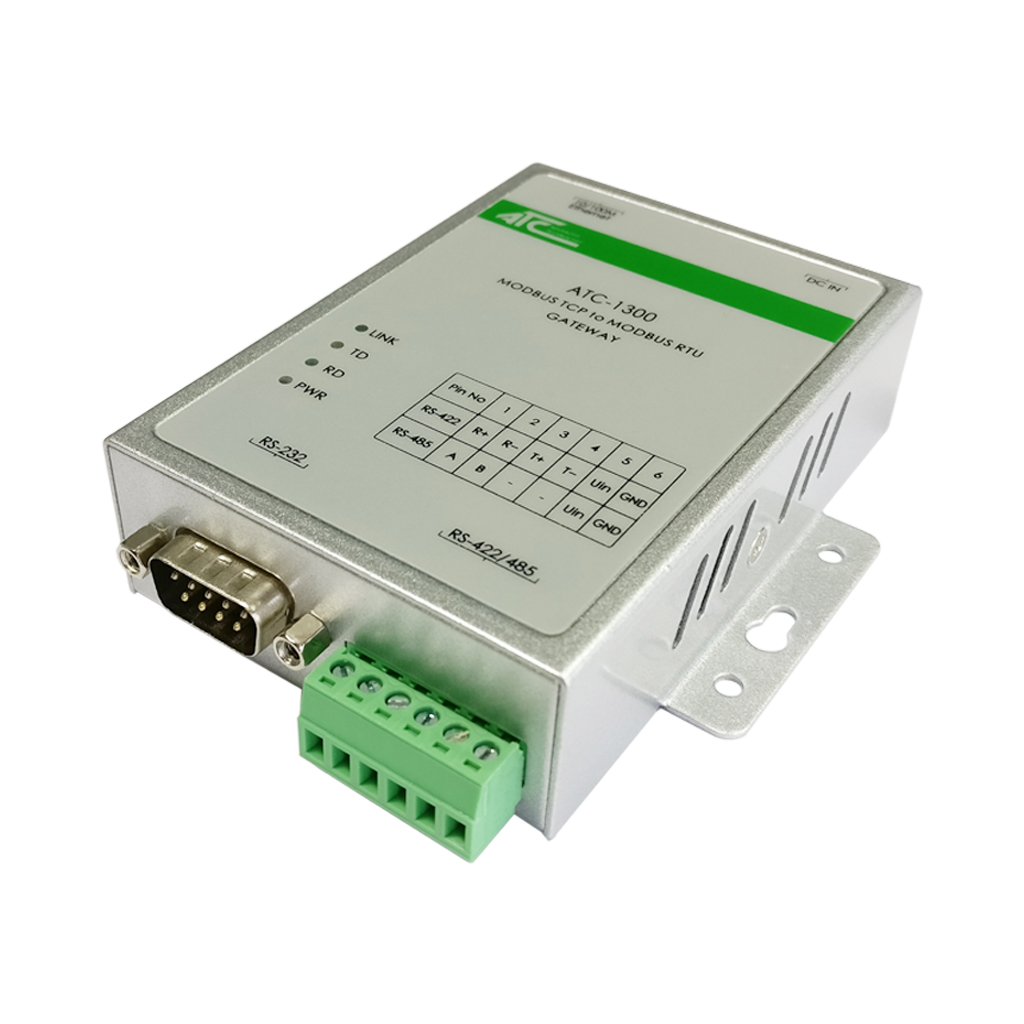

ATC-1300
.jpg)
Modbus TCP and Modbus RTU is an industry adopted
communication protocol that is based on RTU protocols for various of applications; These two protocols are commonly used by a lot of equipment in the industry.Such as DCS, PLC, HMI, I/O module, Power meters, various sensors and measuring instruments. ATC-1300 support the standard Modbus protocol and is capable of converting the Modbus protocols between Modbus TCP (Master) to Modbus RTU(Slave). It’s a simple and cost effective Modbus Gateway.
ATC-1300 which support three most commonly used serial communication interfaces, RS-232, RS-422 and RS-485. It also provides a web-based configuration UI, so the users can select the serial interface easily.
.jpg)
RS-232/422/485 3 in 1 interface
Support 10/100Mbps Ethernet port
Supports 4-wire and 2-wire RS-485 work mode
Automatic data direction control on RS-485
Supports 24VDC industrial power supply
Terminal block easily for RS-422/485 installation
Configure via webpage and windows utility
Supports virtual serial port,TCP Server/Client and UDP work mode
Built-in watchdog
CE, RoHS and FCC Certifications
.jpg)
|
Serial Interface |
|||
|
Interface Type |
RS-232/422/485 3 in 1 |
||
|
Data Rate |
1200bps ~ 115200bps(RS-232),1200bps ~ 921600bps(RS-422/485) |
||
|
Data Length |
5,6,7,8 bits |
||
|
Parity |
Odd, Even, None |
||
|
Stop Bits |
1,1.5,2 bits |
||
|
Flow Control |
None, Hardware: Xon/Xoff |
||
|
Connector |
RS-232 |
DB-9 Male Connector |
|
|
RS-485/422 |
6-pin Terminal Block |
||
|
Serial Line Protection |
600W for RS-232, RS-422/485 |
||
|

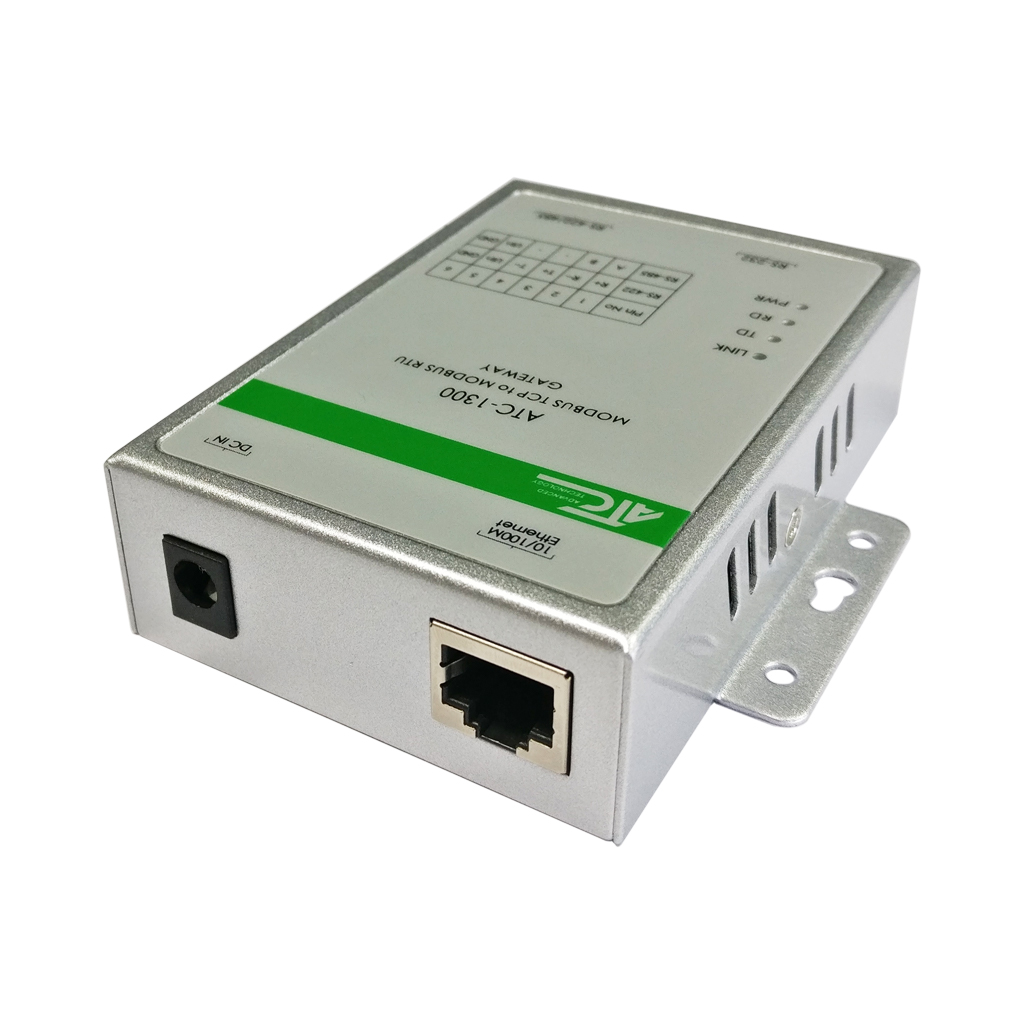

Network Interface |
|||
|
Interface Type |
Ethernet 10/100Mbps (Auto-Sensing) |
||
|
Connector |
8-pin RJ-45 |
||
|
Isolation Protection |
Built-in 1.5KV |
||
|
Protocol |
Modbus TCP/ Modbus RTU |
||
|
Software |
|||
|
Network Protocols |
TCP,DHCP, HTTP SERVER,DNS CLIENT |
||
|
Configure Options |
Web Page,Windows Utility |
||
|
OS support |
Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/WIN7 x64/WIN8 x64、 Linux real、TTY、UNIX |
||
|

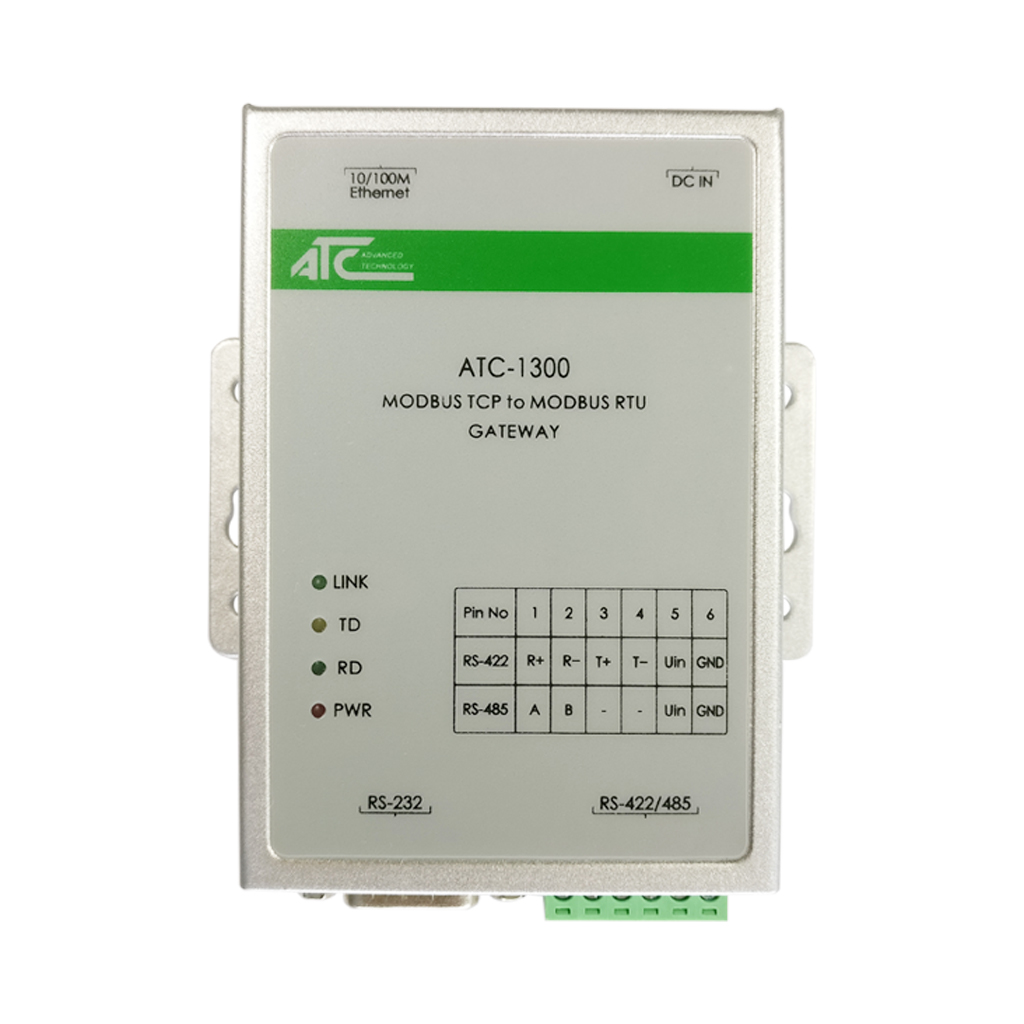

LED Indicators |
LINK |
Link Activity Indicator |
|
|
TXD |
Ethernet to transmit data to the serial port Indicator |
||
|
RXD |
Serial port to transmit data to Ethernet Indicator |
||
|
PWR |
Power indicator |
||
|
Power Supply |
9~24VDC@0.5A |
||
|
Physical Characteristics |
|||
|
Installation |
DIN-Rail Mounting (optional) |
||
|
Housing |
Iron (1mm) |
||
|
Weight |
0.5Kg |
||
|
Dimensions |
Without ears |
100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in) |
|
|
With ears |
100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in) |
||
|
Environmental Limits |
|||
|
Operating Temperature |
-40 ~ 70°C (-13 ~ 158°F) |
||
|
Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
||
|
Humidity |
5% to 95%(non-condensing) |
||
|
Standards and Certifications |
|||
|
RoHS, CE, FCC |
|||
.jpg)
Our products are widely used in electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective, timely and thoughtful service. ATC-1300 Modbus Gateway is an industrial converter, RS-232 interface for each product line 600W, RS-422/485 1000W per line lightning surge protection products can be used in oil fields, dams, steel mills, iron plant, and some other places. . . Working environment up to -40 ℃ to 70 ℃.
