ATC-205G

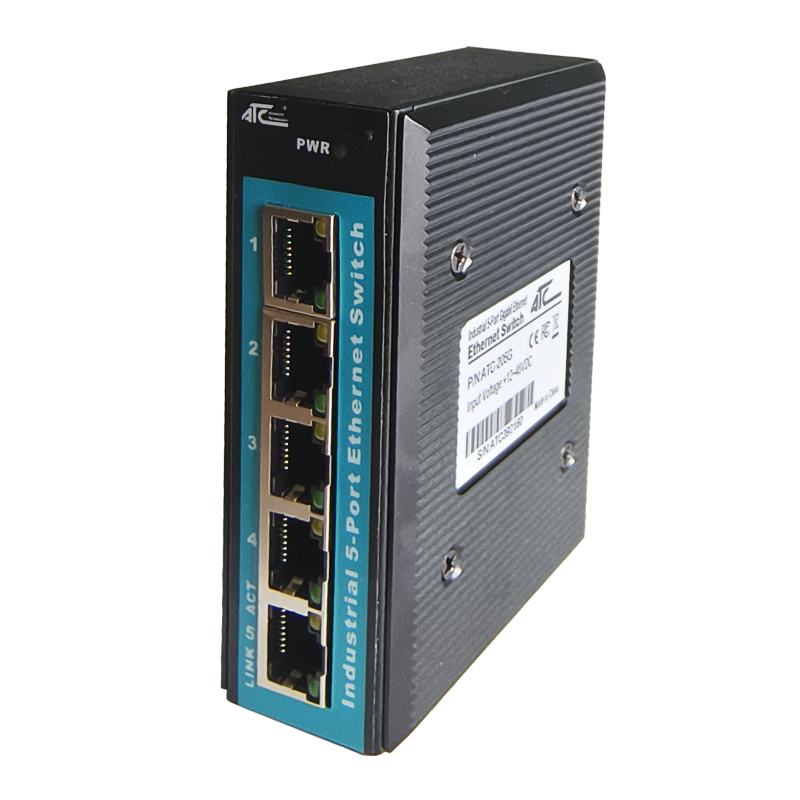

Industrial 5-Port Gigabit Ethernet Switch
image_here
Part number: ATC-205G
In Stock : Available
Datasheet
User's Manual
Driver & software

ATC-205G is a type of unmanaged industrial Ethernet switch with 5 port 10/100/1000M Ethernet, supports IEEE802.3, EEE802.3u, IEEE802.3x standard, can provide economical solution for your network connection. IP40 grade protection ensures reliable work in terrible environment. LED indicator is helpful to monitor and control the status of network connection. It complies with FCC, CE standard.-DIN rail installation and wide operating temperature (-40~75℃), can satisfied some kinds of industrial environment, can provide reliable and quickly solution for your Ethernet device.

Specifications

Network Interface

Interface

Ethernet: 10/100/1000M Base-TX self-adaption, RJ45 port

Transfer distance

Twisted cable: 100m(CAT5/CAT5e)

Technology

Standards

 IEEE802.3, IEEE802.3u

Support

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD), Level 4

EN61000-4-3(RS), Level 3

EN61000-4-4 (EFT), Level 4

EN61000-4-5 (Surge), Level 4

EN61000-4-6(CS), Level 3

EN61000-4-8(PFM), Level 5

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Exchange attribute

100M transmit speed

148810pps

System exchange bandwidth

                           1 G

Transfer

Store and forward

Buffer memory

 64Kbits

MAC Table Size

2K

LED Indicators

Interface indicator

1~5 (LINK/ACT)

Power supply indicator

PWR

Power Requirements

Input Voltage

24VDC(12~48VDC)

Input current

0.1A@24VDC

Terminal block

3 bits 7.62mm terminal block

None load consumption

 0.48W@24VDC

Full load consumption

 1.2W@24VDC

Support inside over-current 4.0A protection  Support opposite connection protection

Physical Characteristics

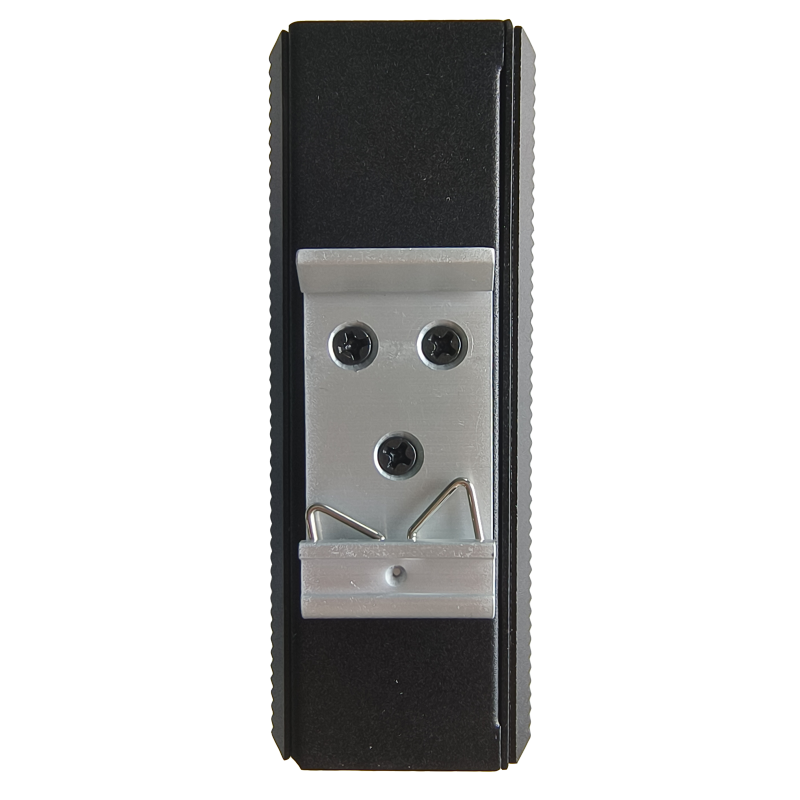

Installation

DIN-Rail Mounting

Shell

IP40, high strength iron shell

Weight

0.4Kg

Dimensions

W×H×D: 110 mm×95mm×35mm

Environmental Limits

Operating Temperature

-45 ~ 75°C

Storage Temperature

-45 ~ 85°C

Ambient Relative Humidity

10% to 95%(non-condensing)

Warranty

                            Warranty time: 3 Years

Standards and Certifications

                        CE, FCC, RoHS, UL508(Pending)
