Industrial Interface Converter
USB to Serial Converters

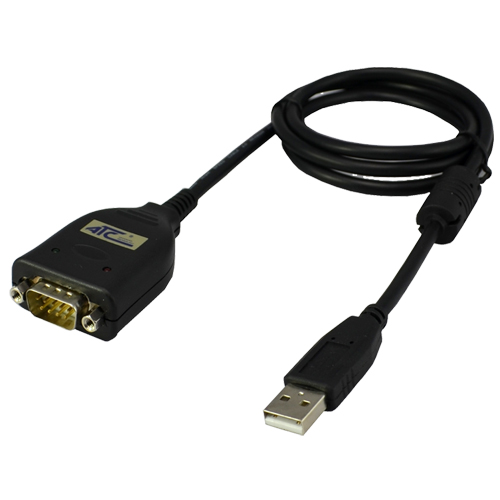

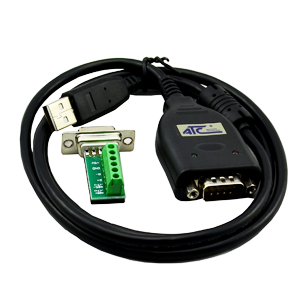

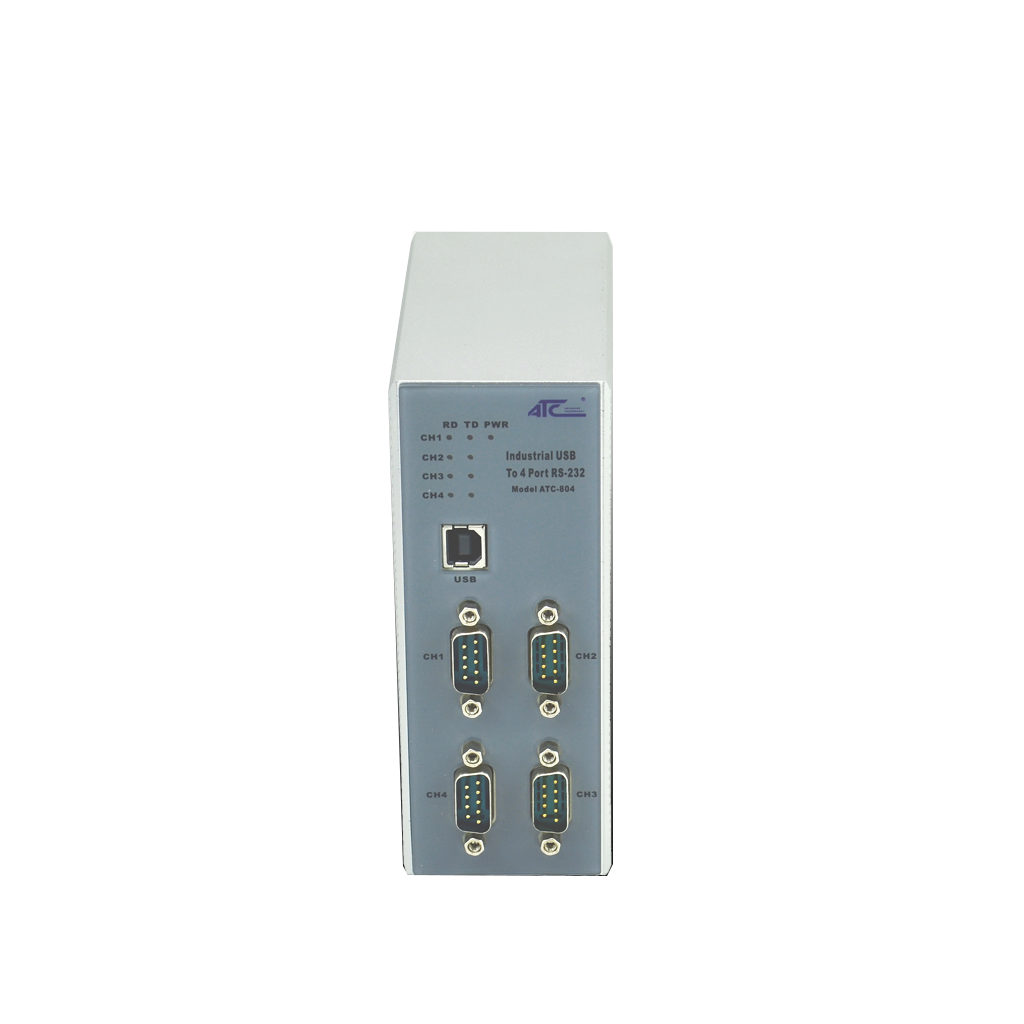

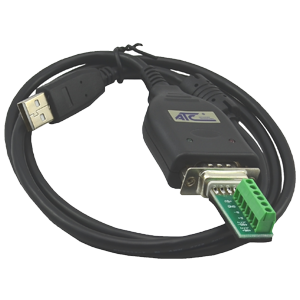

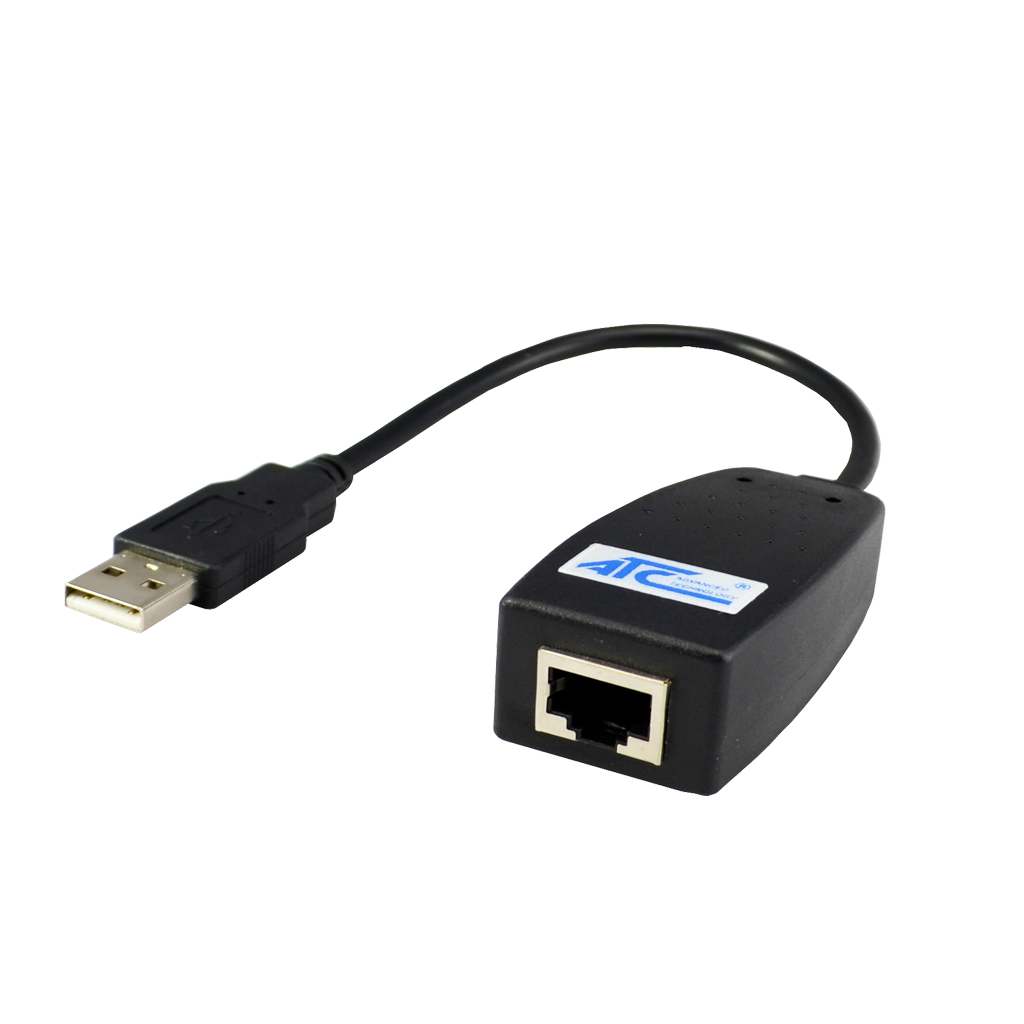

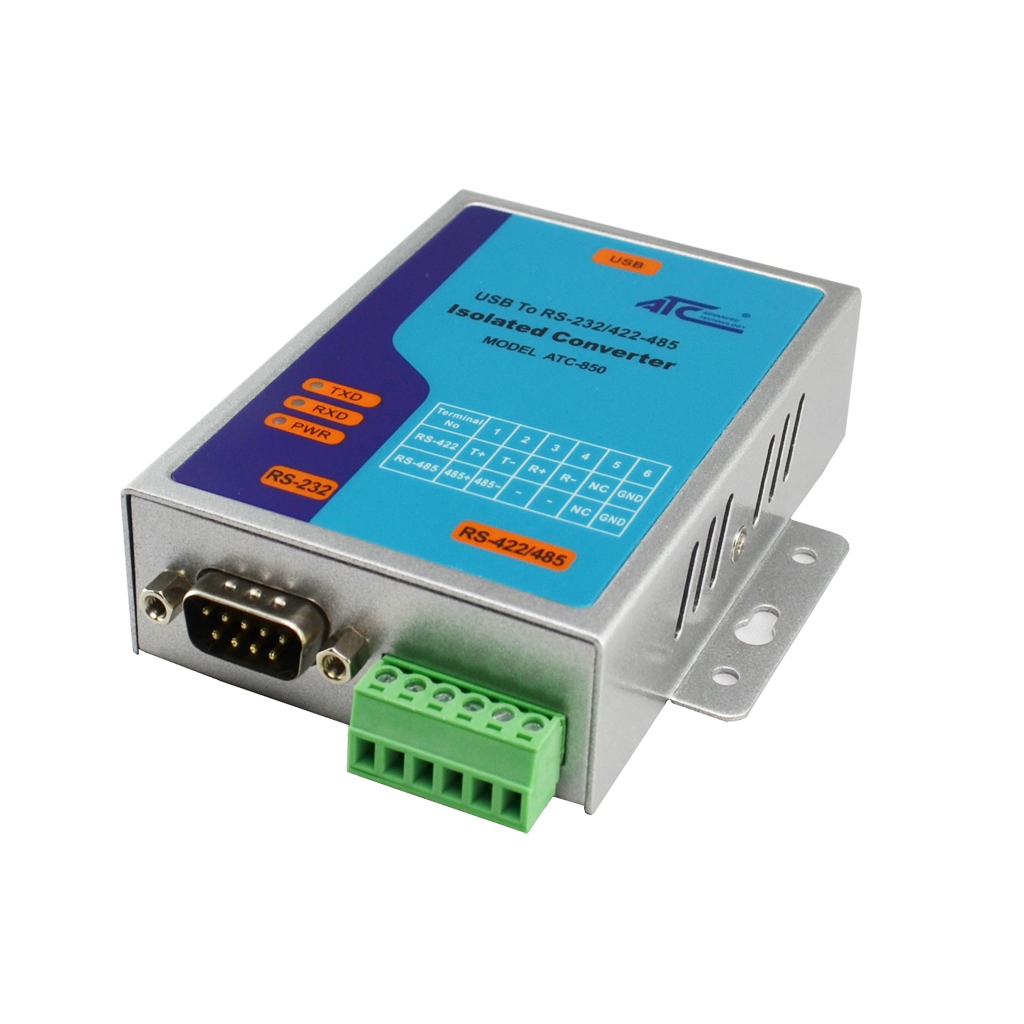

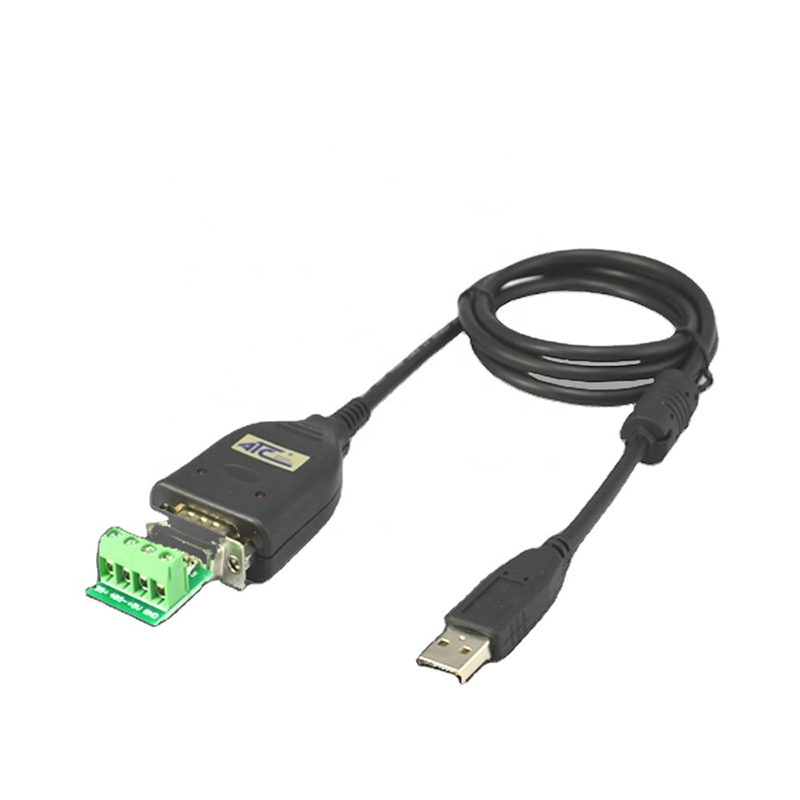

| Model | ATC-804 | ATC-810 | ATC-820 | ATC-820B | ATC-830 | ATC-840 | ATC-850 |
| Description | 4-Port RS-232 USB-High Speed Serial Converter | 1-Port RS-232 USB-High Speed Serial Converter | 1-Port RS-485 USB-High Speed Serial Converter | 1-Port RS-485 USB-High Speed Serial Converter | 1-Port TTL USB-High Speed Serial Converter | 1-Port RS-422 USB-High Speed Serial Converter | 1-Port Isolation USB-High Speed Serial Converter |
| Serial Interface | RS-232 * 4 | RS-232 * 1 | RS-485 * 1 | RS-485 * 1 | TTL * 1 | RS-422 * 1 | RS-232/485/422 * 1 |
| Connector | DB9 male | DB9 male | DB9 male Terminal Block Board | RJ45 | DB9 maleTerminal Block Board | DB9 maleTerminal Block Board | DB9 male 6 Bit Terminal |
| Baud Rate | 50 bps to 460.8Kbps | 50 bps to 460.8Kbps | 50 bps to 921.6Kbps | 50 bps to 921.6Kbps | 300 bps to 921.6Kbps | 50 bps to 460.8Kbps | 50 bps to 460.8Kbps |
| Data Bits | 5, 6, 7, 8 | ||||||
| Parity | None, Even, Odd, Space, Mark | ||||||
| Flow Control | RTS/CTS, XON/XOFF | RTS/CTS, XON/XOFF | XON/XOFF | XON/XOFF | XON/XOFF | XON/XOFF | CTS/RTS, XON/XOFF |
| Serial Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND | 485+,485- | 485+,485- RJ-45:Pin1, Pin2 | TXD, RXD, GND | TX+,TX-,RX+,RX- | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND 485+,485- TX+,TX-,RX+,RX- |
| ESD Protection | 15 KV USB.600W surge protect for signal | 15 KV USB.1000W surge protect for signal | |||||
| Isolation Voltage | - | 3500VRMS 500VDC sequence | |||||
| USB Compliance | Compatible with USB2.0 and USB1.x | ||||||
| USB Connector | USB type A | ||||||
| USB Speed | 12 Mbps (Full-Speed USB) | ||||||
| Operating Systems | Windows (2000, XP x86/x64, 2003 x86/x64,Vista x86/x64, Win7/8/10/11), WinCE 6.0, Linux 2.6 x86/x64 | ||||||
| Housing | Aluminum & Iron | ABS + PC | ABS + PC | ABS + PC | ABS + PC | ABS + PC | Iron |
| Weight | 1.0Kg | 100g(no package) | 0.5Kg | ||||
| Dimensions | 106 × 54 × 136 mm | 60 x 35 x 17mm | 60 x 35 x 17mm | 60 x 35 x 17mm | 60 x 35 x 17mm | 60 x 35 x 17mm | 100 × 86 × 26 mm |
| USB Cable Length | 1000mm | 260mm | 1000mm | ||||
| Operating Temperature | -40 to 70°C (-40 to 158°F) | ||||||
| Storage Temperature | -40 to 85°C (-40 to 185°F) | ||||||
| Operating Humidity | 5 to 95% RH | ||||||
| Certifications | RoHS, CE, FCC | ||||||
Serial Interface Converters(Port Powered Converter)
-白底.jpg)

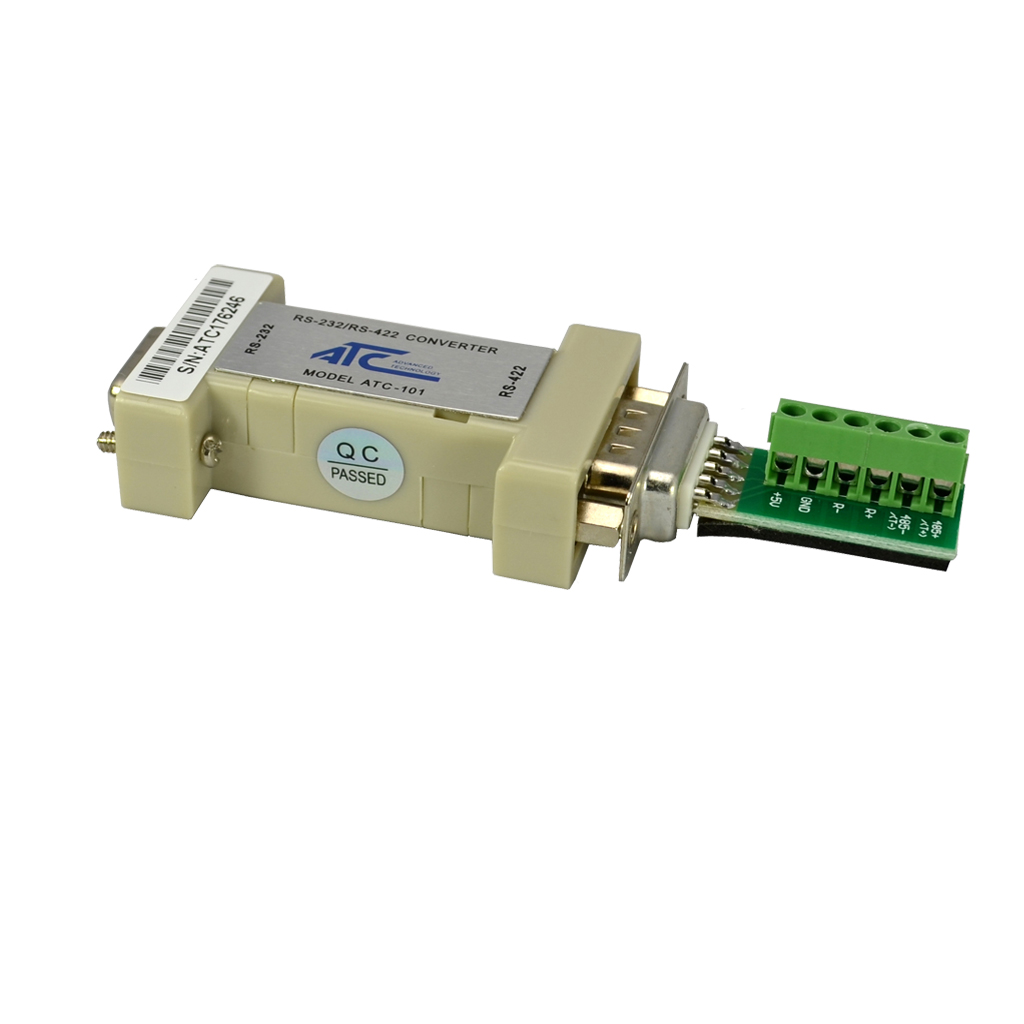

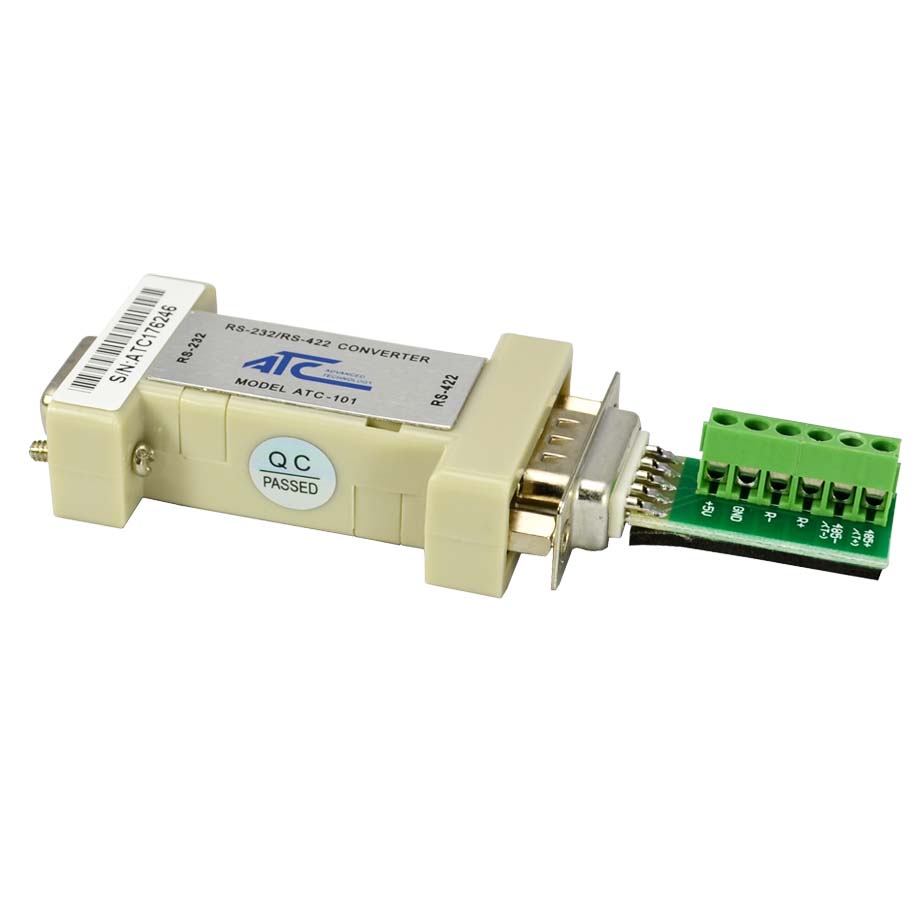

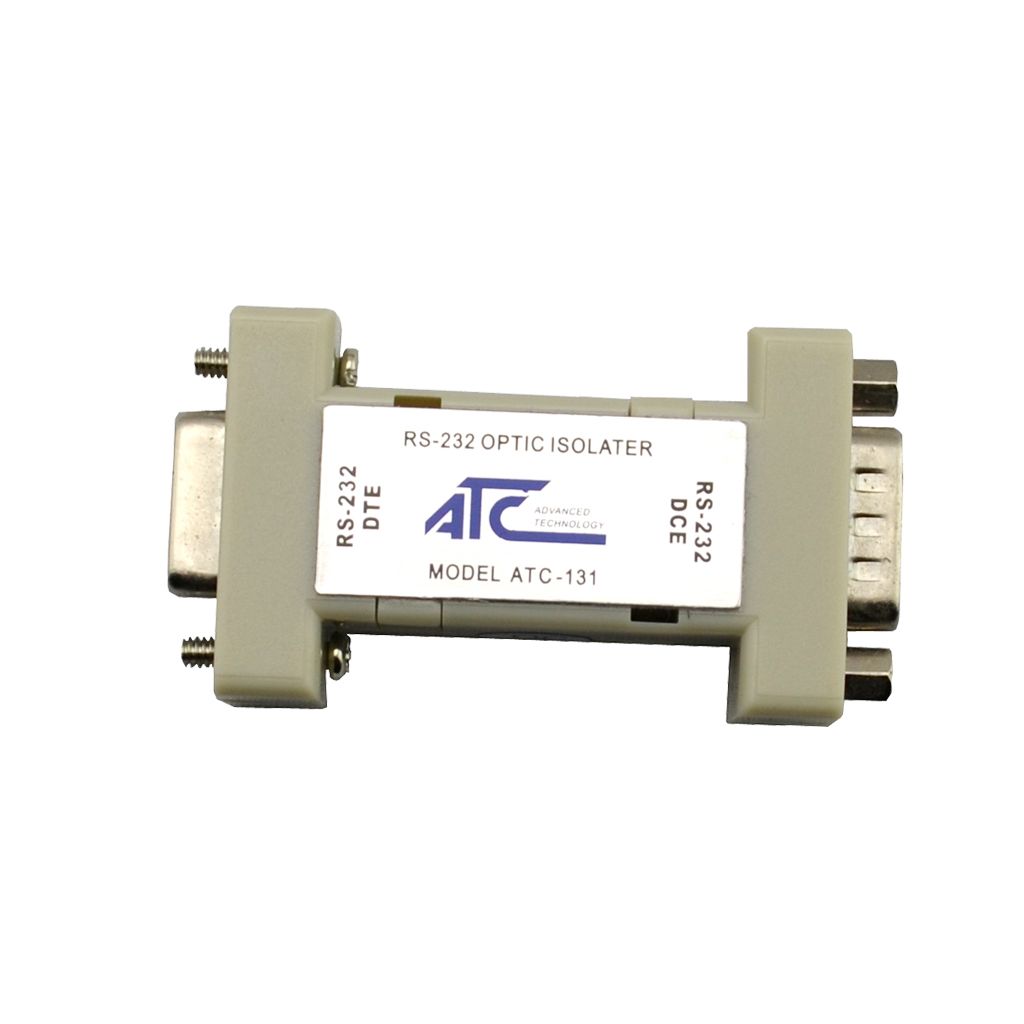

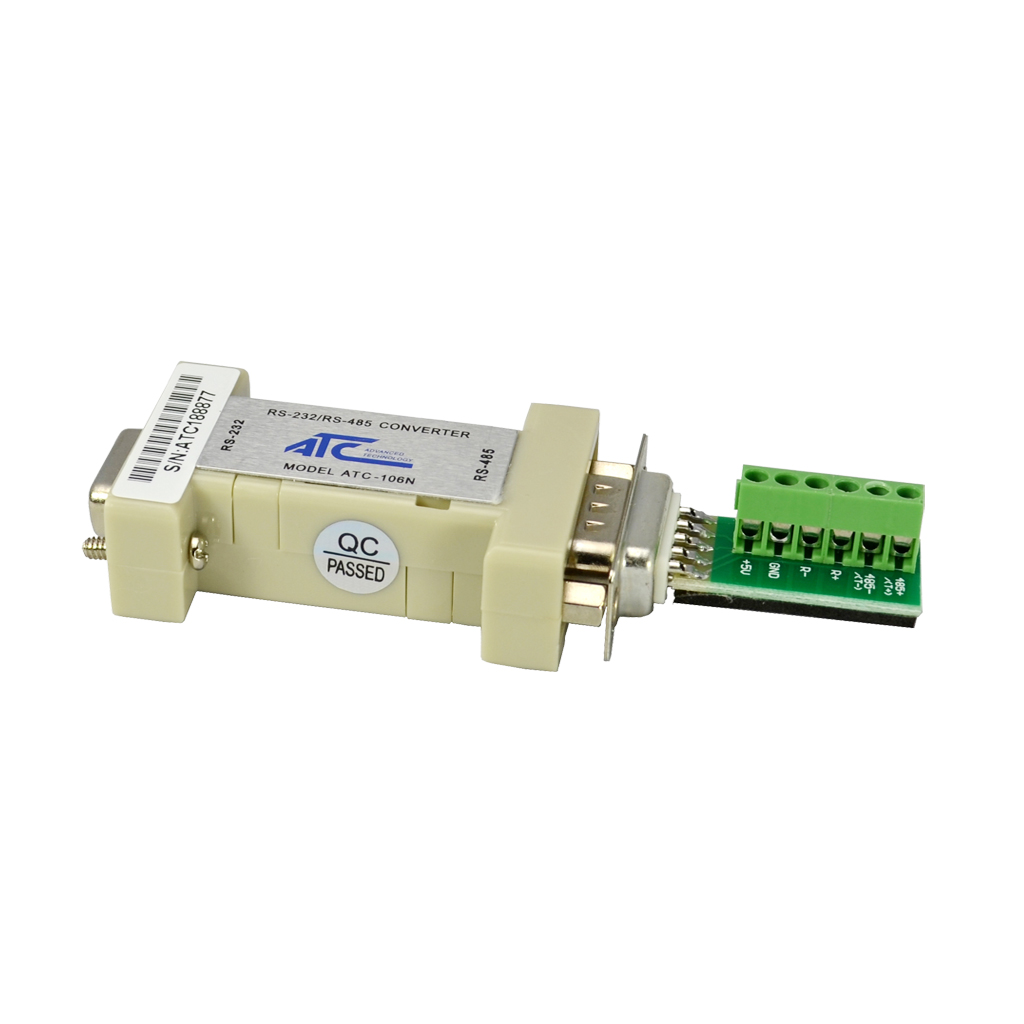

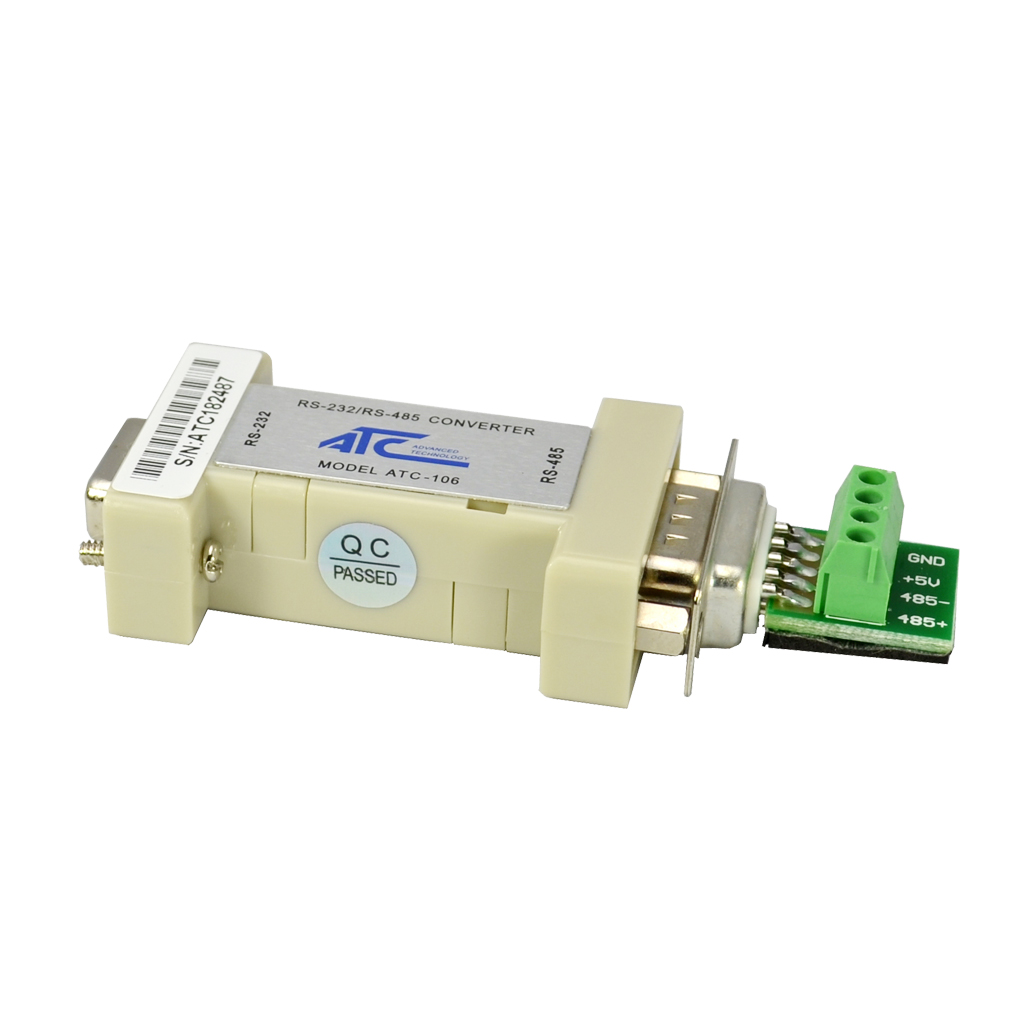

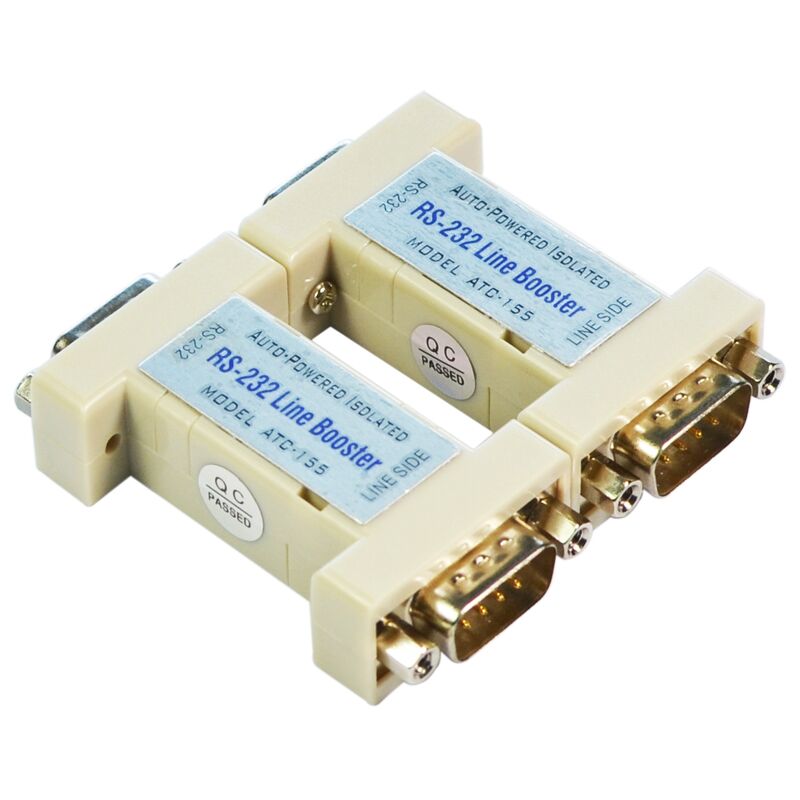

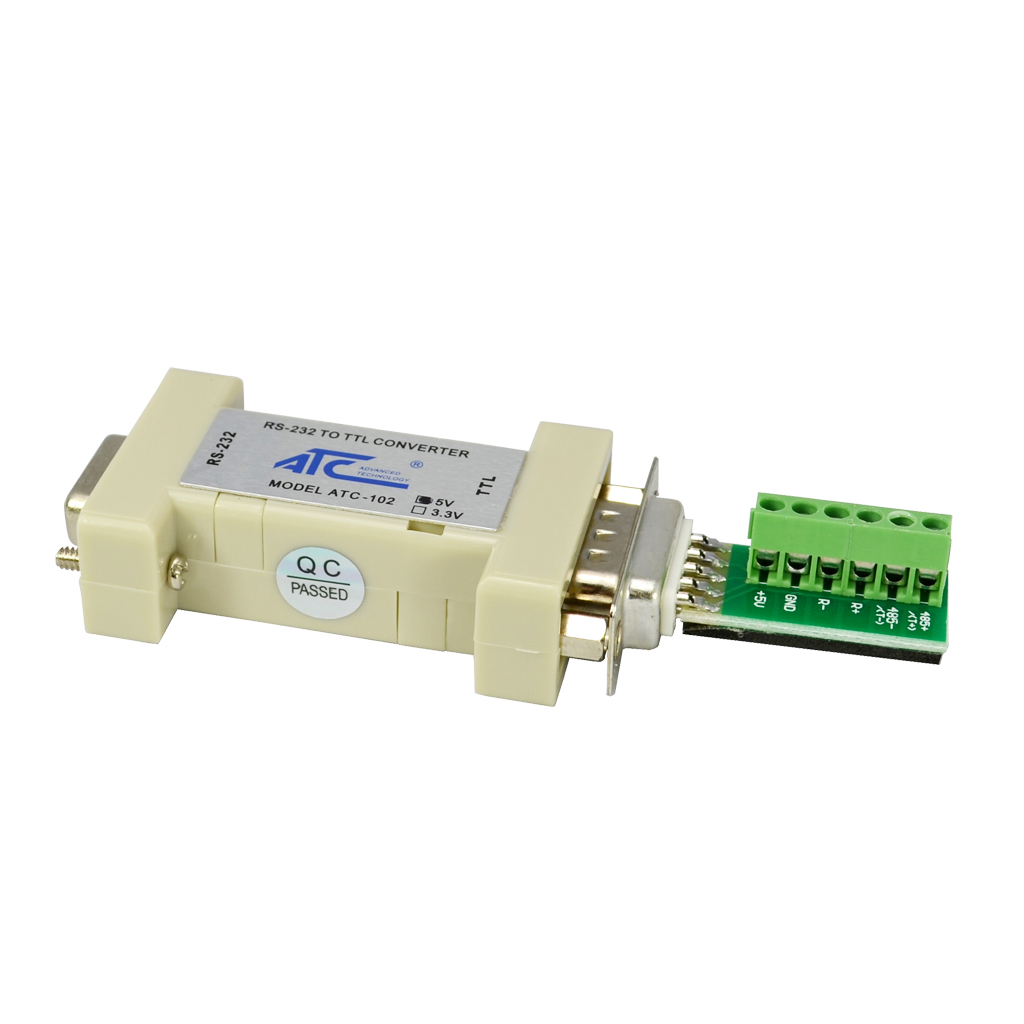

| Model | ATC-101 | ATC-102 | ATC-106 | ATC-106N | ATC-106NH | ATC-131 | ATC-155 |
| Description | RS-232 to RS-422 Interface Converter | RS-232 to TTL Interface Converter | RS-232 to RS-485 Interface Converter | RS-232 to RS-485 Interface Converter | High Speed RS-232 to RS-485 Interface Converter | RS-232 Serial Port Photoelectric Isolator | Photoelectric Isolation Long Distance Transceiver |
| Connector | RS-232: DB9 male RS-422: DB9 male or 6-Bit Terminal block | RS-232: DB9 male TTL: DB9 male or 6-Bit Terminal block | RS-232: DB9 male RS-485: DB9 male or 4-Bit Terminal block | RS-232: DB9 male RS-485: DB9 male or 6-Bit Terminal block | RS-232: DB9 male RS-485: DB9 male or 6-Bit Terminal block | DB9 | DB9 |
| Baud Rate | 0-115.2kbps | 0-115.2kbps | 0-115.2kbps | 0-115.2kbps | 0-460.8kbps | 0-57.6kbps | 0-57.6kbps |
| Isolation | - | 2500V in succession or 7500V pulse | |||||
| Housing | Plastic shell | ||||||
| Weight | 0.45Kg | ||||||
| Dimensions | 88mmx33mmx17mm | ||||||
| Operating Temperature | -40 to 70°C (-40 to 158°F) | ||||||
| Storage Temperature | -40 to 85°C (-40 to 185°F) | ||||||
| Operating Humidity | 5 to 95% RH | ||||||
| Certifications | RoHS, CE, FCC | ||||||

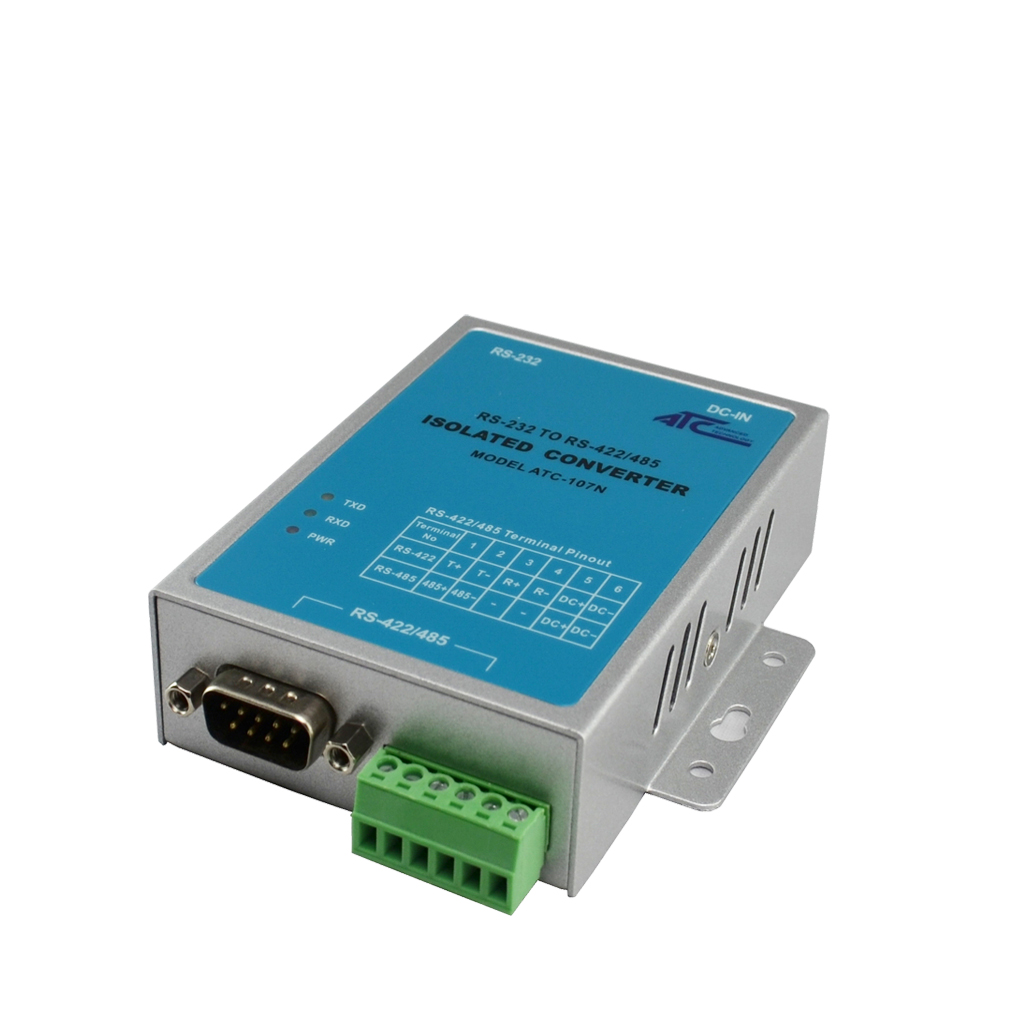

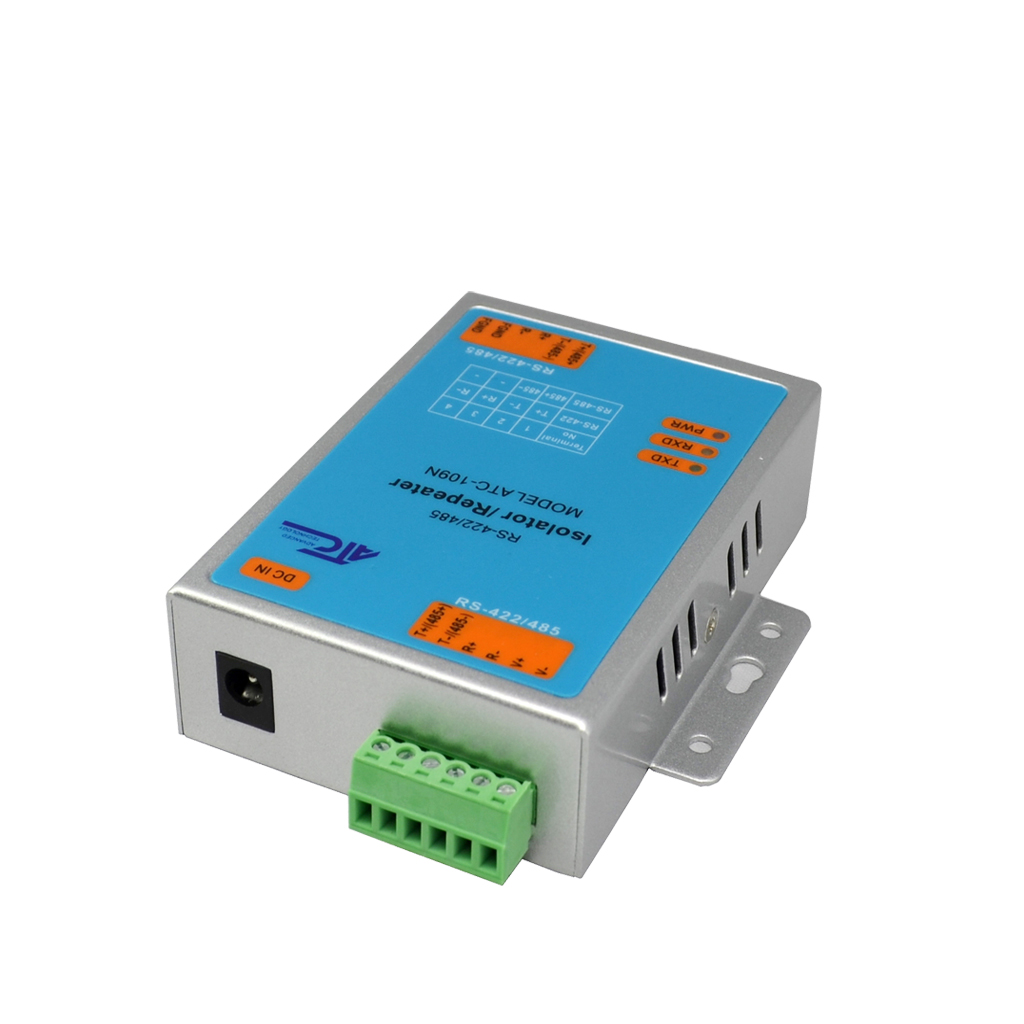

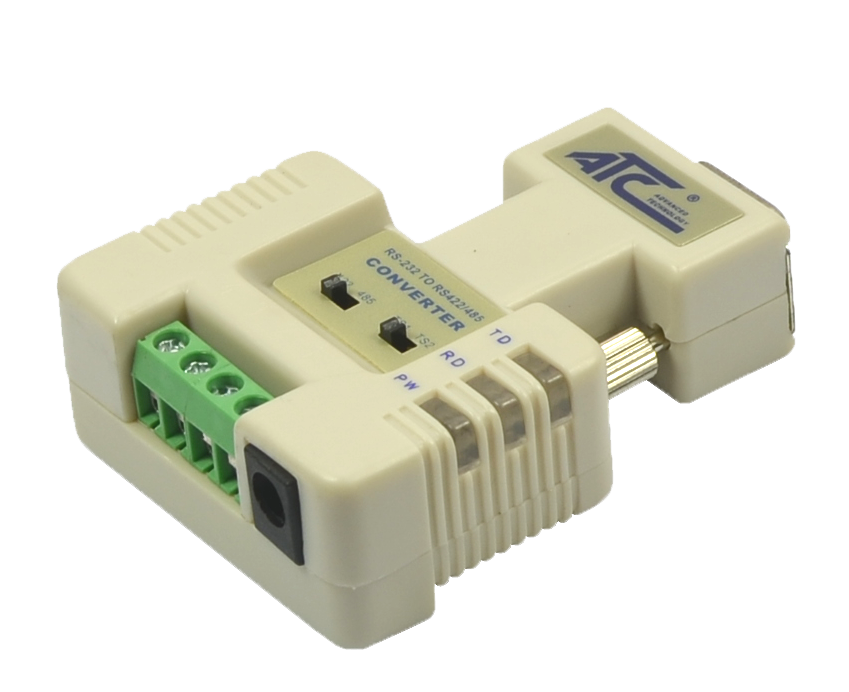

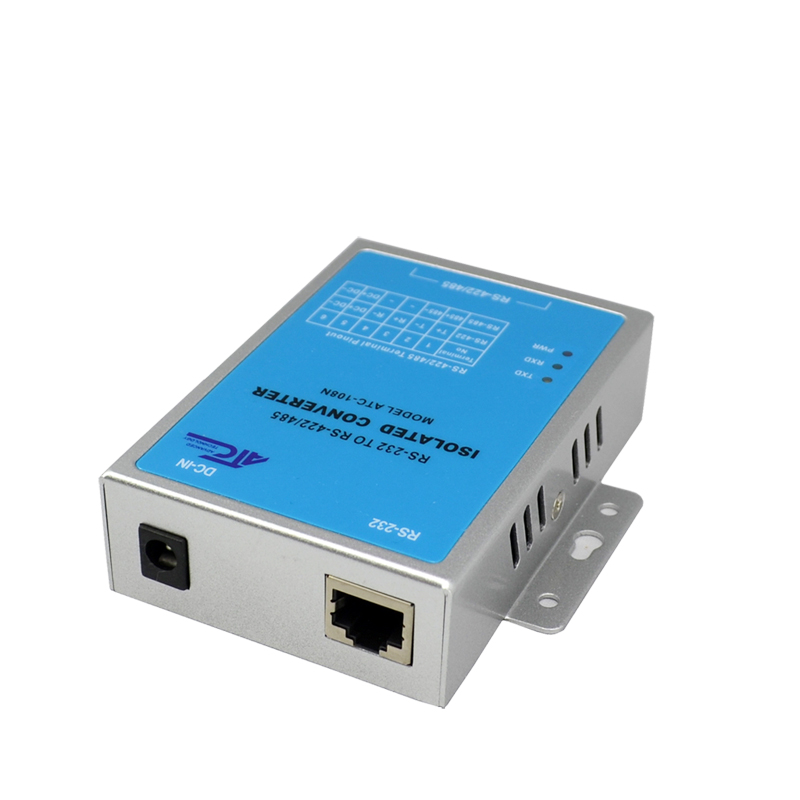

| Model | ATC-105 | ATC-105N | ATC-107N | ATC-108N | ATC-109N | ATC-1204 |
| Description | Industrial Class Photoelectric Isolated Converter RS-232 to RS-485/422 | Industrial Class Electromagnetic Isolated Converter RS-232 to RS-485/422 | Industrial Class Photoelectric Isolated Converter RS-232 to RS-485/422 | Industrial Class Photoelectric Isolated Converter RS-232 to RS-485/422 | Industrial Class Photoelectric Isolated RS-485/422 Repeater | Industrial Class Photoelectric Isolated 4 Port RS-485 Hub |
| Connector | RS-232: DB9 male RS-485/422: 4-Bit Terminal | RS-232: DB9 male RS-485/422: 4-Bit Terminal | RS-232: RJ45 / DB9 male RS-485/422: DB9 male or 4-Bit Terminal | RS-232: RJ45 / DB9 male RS-485/422: DB9 male or 6-Bit Terminal | 6-Bit Terminal | RJ45 |
| Baud Rate | 0-115.2kbps | 0-230kbps | 0-115.2kbps | 0-115.2kbps | 0-115.2kbps | 0-115.2kbps |
| Isolation | Isolation Voltage 2500VRMS 500VDC Sequence. Protecting Grade: RS-232 Interface 600W lightning strike and surge protection. RS-422/485 Interface 1000W lightning strike and surge protection on each line. | Isolation voltage 3500VRMS 500VDC sequence. High efficiency lightning protection tube can effectively inhibit lightning and ESD. And offer 1000W lightning strike & surge protection power on each line. | ||||
| Housing | Plastic shell | Iron (1mm) | ||||
| Weight | 0.3Kg | 0.5Kg | 0.6Kg | |||
| Dimensions | 76mmx54mmx23mm | 100mmx86mmx26mm | 140mmx130mmx30mm | |||
| Operating Temperature | -40 to 70°C (-40 to 158°F) | |||||
| Storage Temperature | -40 to 85°C (-40 to 185°F) | |||||
| Operating Humidity | 5 to 95% RH | |||||
| Certifications | RoHS, CE, FCC | |||||
Serial Interface Converters(Isolated Converter & Repeaters)

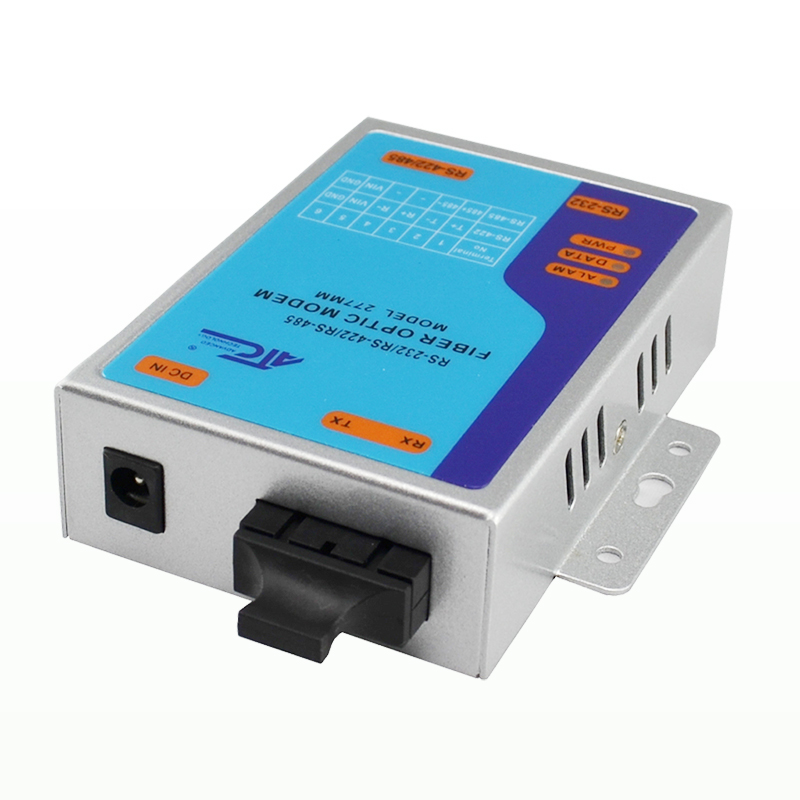

Serial Port to Fiber Optic Data Converter

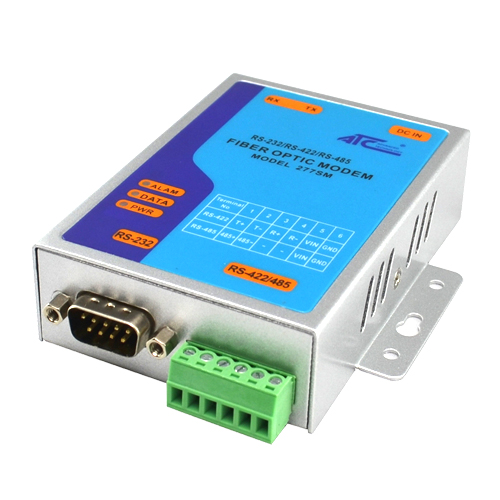

| Model | ATC-277MM | ATC-277SM |
| Description | Multi-Mode Optical Fiber MODEM | Single-Mode Optical Fiber MODEM |
| Fiber Interface | SC or ST | |
| Fiber Requirements | 50/125μm, 100/140μm, 200μm | |
| Fiber Transmission Distance | 2 km | 20 km |
| Fiber Wavelength | 850 nm | 1310 nm |
| Serial Connector | RS-232: DB9 male, RS-485/422: 6-Bit Terminal | |
| Baud Rate | RS-232 300 to 115.2Kbps, RS-422/485 300 to 230.4Kbps | |
| Isolation | Isolation Voltage 2500VRMS 500VDC Sequence. Protecting Grade: RS-232 Interface 600W lightning strike and surge protection. RS-422/485 Interface 1000W lightning strike and surge protection on each line. | |
| Power Supply | 9-24VDC @ 250mA max | |
| Housing | Iron (1mm) | |
| Weight | 0.6kg (Full Package) | |
| Dimensions | 100mmx86mmx26mm | |
| Operating Temperature | -40 to 70°C (-40 to 158°F) | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) | |
| Operating Humidity | 5 to 95% RH | |
| Certifications | RoHS, CE, FCC | |

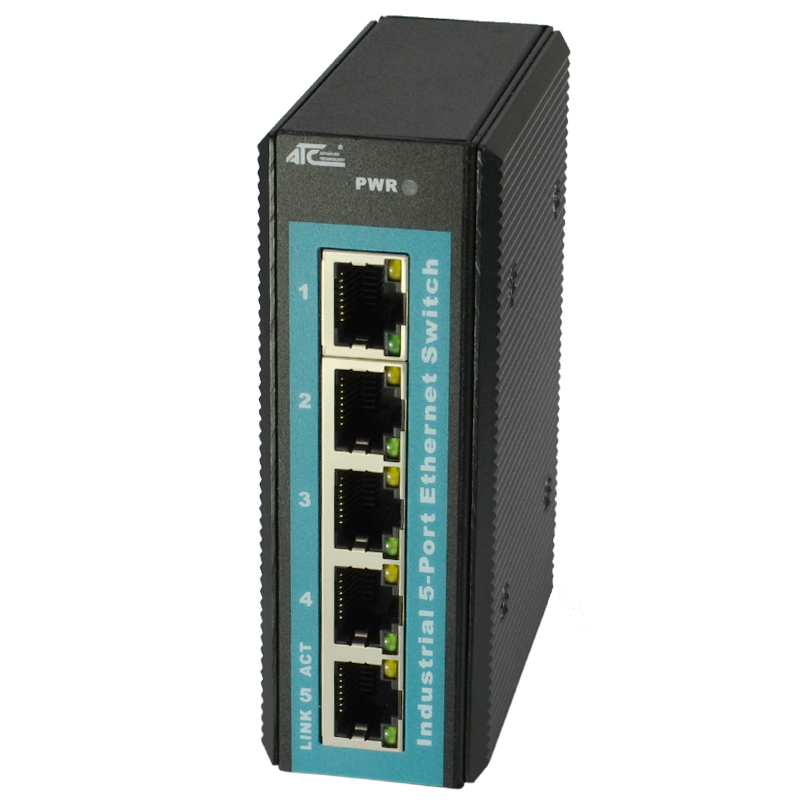

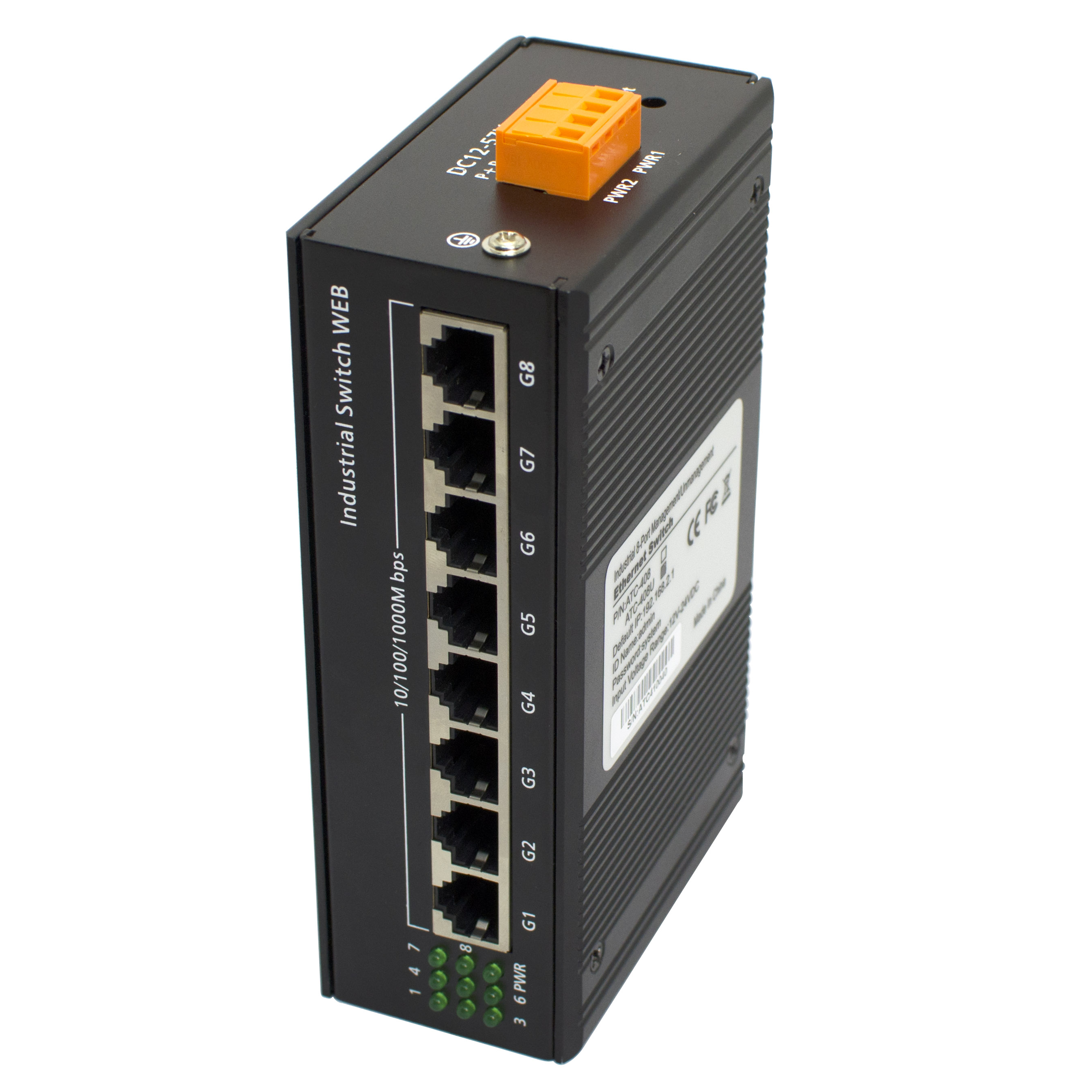

| Model | ATC-205 | ATC-205G | ATC-405 | ATC-405U | ATC-408 | ATC-408U |
| Description | 5 Port 10/100M Un-managed Industrial Ethernet Switch | 5-Port Gigabit Un-managed Industrial Ethernet Switch | 5 Port10/100M Fast Managed Industrial Ethernet Switch | 5-Pot 10/100M Fast Un-managed Industrial Ethernet Switch | 8 Port10/100M Fast Managed Industrial Ethernet Switch | 8-Pot 10/100M Fast Un-managed Industrial Ethernet Switch |
| Interface Type | 10/100M | 10/100/1000M | 10/100M | 10/100M | 10/100M | 10/100M |
| Connector | 8-pin RJ-45 * 5 | 8-pin RJ-45 * 5 | 8-pin RJ-45 * 5 | 8-pin RJ-45 * 5 | 8-pin RJ-45 * 8 | 8-pin RJ-45 * 8 |
| Isolation Protection | Built-in 1.5KV | |||||
| Standards | IEEE802.3,IEEE802.3u | IEEE802.3,IEEE802.3x, IEEE802.3u | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication | |||
| MAC Table Size | 2K | 2K | 16K | |||
| Power Supply | 12~48VDC | 12~24VDC | 12~48VDC | |||
| Installation | DIN-Rail Mounting | |||||
| Housing | IP40, High Strength Iron Shell | Aluminum & Iron | IP40, High Strength Iron Shell | |||
| Weight | 0.4Kg | 0.6Kg | 1.0Kg | |||
| Dimensions | 110×95×35mm | 106×54×136mm | 140*85*45mm | |||
| Operating Temperature | -40 to 70°C (-40 to 158°F) | |||||
| Storage Temperature | -40 to 85°C (-40 to 185°F) | |||||
| Operating Humidity | 5 to 95% RH | |||||
| Certifications | RoHS, CE, FCC | |||||
Industrial Ethernet Switches
USB to Serial Converters DataSheet Download
-
ATC-840_Datasheet_V1_1.pdf208.29 KB
-
ATC-820B_Datasheet_V1_1.pdf225.22 KB
-
ATC-830_Datasheet_V1_1.pdf276.28 KB
-
ATC-850_Datasheet_V3_1.pdf321.24 KB
-
ATC-820_Datasheet_V3_1.pdf222.67 KB
-
ATC-810_Datasheet_V2.0.pdf197.12 KB
-
ATC-804_Datasheet_V2_0.pdf214.16 KB
Serial Interface Converters DataSheet Download (Port Powered Converter)
Serial Interface Converters DataSheet Download (Isolated Converter & Repeaters)
-
ATC-105_Datasheet_V3_1.pdf388.61 KB
