  • Smaller size, beautiful appearance, and innovative design
  • High frequency PWM control, high conversion efficiency
  • Soft start current effectively reduces instantaneous current surge
  • Built in EMI filtering circuit, with minimal ripple and noise
  • It has protection functions such as short circuit, overload, overheating and overvoltage
  • It has functions such as suppressing power grid surges and resisting lightning strikes
  • Adopting international brand power IC chips with stable performance
  • International standard 35mm rail installation, easy to install

Industrial Power Adatper

Product NumberEDR-50-24PEDR-72-24PEDR-100-24PEDR-120-24P
Maximum Output Current2.1A3A4.2A5A
Output Voltage24V(rated output voltage ±10% adjustable)
Input Power100~240VAC 50/60Hz
Input CurrentCold start 20A/110V, 40A/220V
Overload Protection120%~150%, Automatic recovery
Overvoltage Protection30V(Automatic recovery beyond voltage maximum)
Short Circuit ProtectionAutomatic protection and recovery when the output is shorted
Working Environment-10~+50°C (100% load), humidity 5%~95%, no condensation
Dimensions90(H)*75(D)*45(W)mm

Industrial Power Adatper Specifications

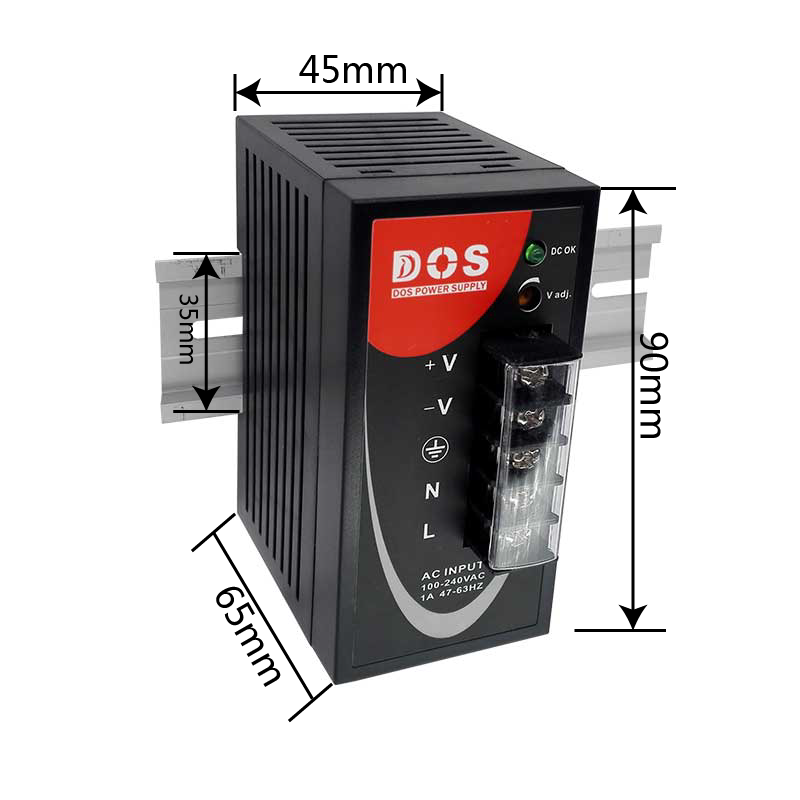

Industrial Power Adatper Dimensions
