The Wireless Module is used as the wireless data transmission in short distance. With the small size, weight and power consumption and good stability and reliability, it has the function of bi-directional data sign transmission, test and control. It is used for Wireless meter reading, such as water meter, electric meter and gas meter, parking meter, intellective card, electronic weighing apparatus, meter for checking on work attendance, queue wireless meter, building control, shipping company control, alarm system, intelligent equipment, Automatic data collecting system; Industrial remote control and remote test building automation, safety and security, powerhouse equipment wireless monitor, entrance control system, etc.

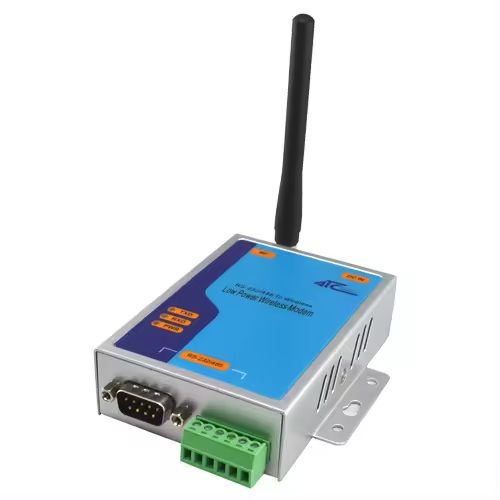

Industrial Wireless Converter

ModelATC-863ATC-871ATC-873ATC-875
Distance(Visual Transmission)300m500m1000m2000m
Transmission Power100mW100mW500mW2W/1W
Receiving Sensitivity-110dBm-121dBm-123dBm-123dBm
Transmitting Current<360mA<360mA<75mA<1.5A
Receiving Current<11mA<30mA<45mA<50mA
Sleeping Current<10uA<10uA<1mA<1mA
Working Frequency433MHz/868MHz/915MHz
Serial TypeRS-232/485/TTL
RF Baud Rate1200/2400/4800/9600/19200bps1200/2400/4800/9600/19200/38400bps1200/2400/4800/9600/19200/38400bps1200/2400/4800/9600/19200/38400bps
UART Baud Rate1200/2400/4800/9600/19200bps1200/2400/4800/9600/19200/38400bps1200/2400/4800/9600/19200/38400bps1200/2400/4800/9600/19200/38400bps
Interface Data Format8E1/8N1/8O1
Change Time For Receiving And Sending<10ms
Power Supply9-24VDC@200mA5VDC@1A
InstallationWall Installation or 35mm DIN-Rail Mounting (optional)Wall Installation
HousingIron (1mm)
Weight0.6kg
Dimensions100 × 86 × 26 mm92 × 62 × 23 mm
Operating Temperature-20 ~ 70°C (-4 ~ 158°F)
Storage Temperature-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity5% to 95%(non-condensing)
Standards And CertificationsRoHS, CE, FCC

Industrial RF Module Specifications

ModelATC-2630ATC-3200
Distance(Visual Transmission)200m100m
Receiving Sensitivity-100dBm-102dBm
Working Mode

Point to point, point to multipoint, Router

Point to point, point to multipoint
Working FrequencyZigbee 2.4G
Serial TypeRS-232/485/422
UART Baud RateMax 115200bps
Interface Data Format8E1/8N1/8O1
Power Supply9-24VDC@1A
InstallationWall Installation or 35mm DIN-Rail Mounting (optional)
HousingIron (1mm)
Weight0.5kg
Dimensions100 × 86 × 26 mm
Operating Temperature-20 ~ 70°C (-4 ~ 158°F)
Storage Temperature-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity5% to 95%(non-condensing)
Standards And CertificationsRoHS, CE, FCC

Industrial Zigbee Module Specifications

Industrial Wireless Converter DataSheet Download

  • ATC-875_Datasheet_V3_2.pdf
    313.66 KB
    Download
  • ATC-863_&_871_&_873_Datasheet_V3_2.pdf
    315.28 KB
    Download
  • ATC-2630_datasheet_V1_1.pdf
    475.70 KB
    Download
  • ATC-3200_datasheet_V3_1.pdf
    435.30 KB
    Download
  • ATC-3200_datasheet_V3_1.pdf
    435.30 KB
    Download

Industrial Wireless Converter User Manual Download

  • ATC-863_433MHz_User_Manual.pdf
    57.75 KB
    Download
  • ATC-871_433MHz_User_Manual.pdf
    56.90 KB
    Download
  • ATC-873_433MHz_User_Manual.pdf
    61.32 KB
    Download
  • ATC-875_User's_Manual.pdf
    454.83 KB
    Download
  • ATC-2630_User's_Manual_V1_1.pdf
    460.51 KB
    Download
  • ATC-3200_User's_Manual_V3_1.pdf
    414.47 KB
    Download

Industrial Wireless Converter Software Download

  • ATC_RF(ATC-863_871_873_875)Software.zip
    489.37 KB
    Download
  • ATC-2630_Software.zip
    5.09 MB
    Download
  • ATC-3200_Software.rar
    551.53 KB
    Download
